File:PowerBook Duo Dock exploded view (Service Source).png
Size of this preview: 428 × 599 pixels. Other resolution: 1,512 × 2,117 pixels.
Original file (1,512 × 2,117 pixels, file size: 136 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

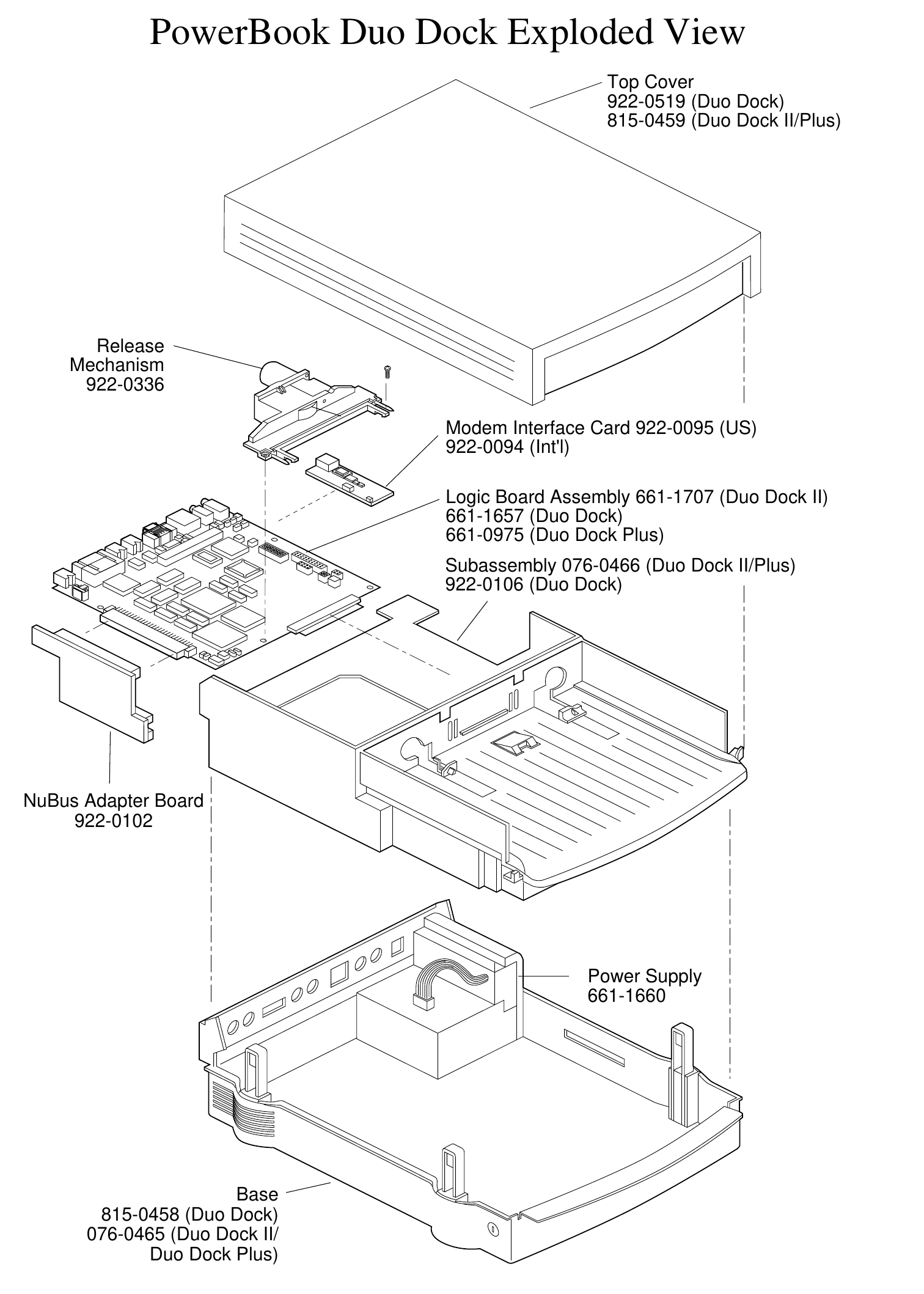

Exploded view of the PowerBook Duo Dock, Duo Dock II and Duo Dock Plus with Apple service part numbers for the top cover, release mechanism, modem interface card, logic board, subassembly, NuBus adapter board, power supply and base. Rendered from page 121 of Apple's PowerBook Duo Dock Service Source (File:PowerBook Duo Dock Service Source.pdf) and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:PowerBook Duo Dock Service Source.pdf, PDF page 121.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
