File:PowerBook G3 Series internal hardware locator (Service Source).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

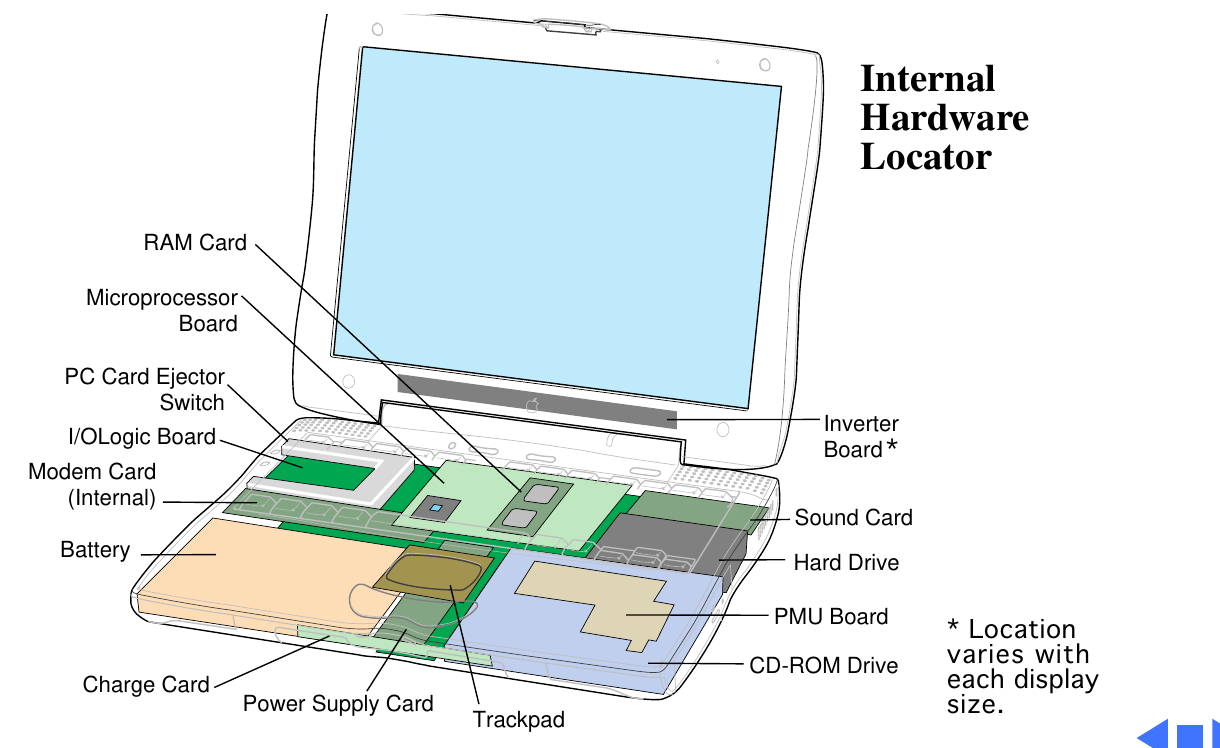

Apple's internal hardware locator for the PowerBook G3 Series (Wallstreet): RAM card, microprocessor board, PC Card ejector switch, I/O logic board, internal modem card, battery, charge card, power supply card, trackpad, inverter board, sound card, hard drive, PMU board and CD-ROM drive. Apple notes that the inverter board's location varies with display size (Basics p. 37, PDF p. 47).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from Apple's PowerBook G3 Series Service Source, hosted here as File:PowerBook G3 Series Service Source.pdf (see PowerBook G3 Series Service Source), PDF p. 47.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
