File:Power Macintosh AV composite video adapters (Apple user's guide).png
Size of this preview: 654 × 600 pixels. Other resolution: 960 × 880 pixels.
Original file (960 × 880 pixels, file size: 97 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

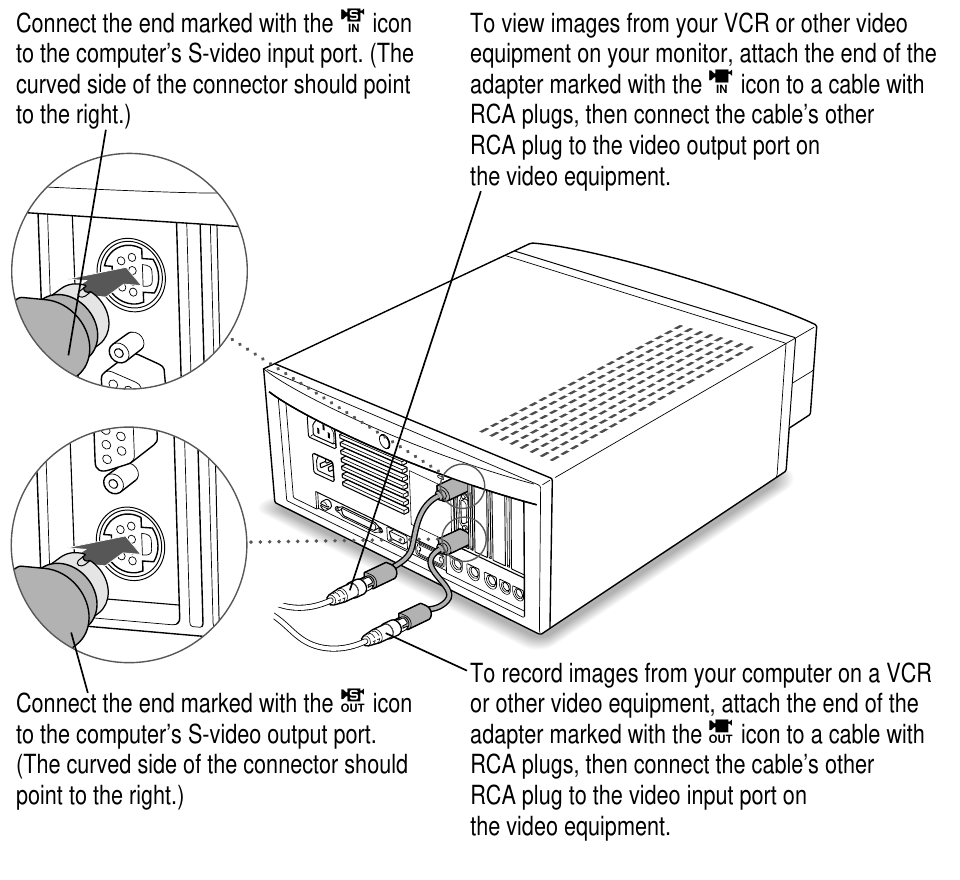

Apple's drawing of the two S-video-to-RCA adapters supplied with Power Macintosh AV models, fitted to the S-video input and output ports of a Power Macintosh 7100/66AV. The callouts say which end is marked with the IN and OUT icons and which way round the plugs go. From page 42 of the Power Macintosh 7100 user's guide (1994), rendered at 200 dpi and cropped to the figure.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Power Macintosh 7100 User's Guide (1994).pdf, printed page 42 (PDF page 52).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed; hosted for preservation and repair reference.
