Macintosh IIsi Capacitor Replacement Guide

From RetroTechCollection

The Macintosh IIsi has aluminium electrolytic capacitors on the logic board and in the power supply, and Recap-a-Mac found leaks in both; it describes the supply as "extremely prone to leakage" and expects few to still be working on their original capacitors.[1][2] Apple published no capacitor lists for either board; the lists below are from Console5 and Recap-a-Mac, who worked from physical boards.

Signs of failure

[edit | edit source]
  • Brown or crusty residue around the surface-mount capacitors, and corrosion on nearby pads and tracks.[3]
  • Electrolyte marks on the power supply board around the secondary capacitors.[3]
  • For the symptoms of failed capacitors see Capacitor Failure Symptoms; for Apple's fault charts see Macintosh IIsi Troubleshooting.

Logic board capacitor list

[edit | edit source]
Macintosh IIsi logic board 820-0301-A with the electrolytic capacitors marked (Recap-a-Mac)
Macintosh IIsi logic board 820-0301-A
Positions Value Type
C7, C9, C10, C11, C20, C22, C31, C34, C35, C36, C38 47 µF 16 V Surface-mount electrolytic
C45, C130 220 µF 16 V Axial electrolytic

Designators are Console5's; its list names C31 twice.[4] Recap-a-Mac's photograph shows the same eleven 47 µF and two 220 µF parts.[1] Its board has the ROM soldered on; Apple's developer note says the first production boards carried the ROM on a ROM SIMM instead.[5] Recap-a-Mac warns that a board may not look identical to its photograph, which also has a replacement CPU and some capacitors moved off damaged pads.[1] A higher voltage rating in the same size is acceptable. Ed Retro Tech replaced the surface-mount parts with tantalums, which have a solid electrolyte and cannot leak; mind the polarity marking, which on a tantalum marks the positive end.[3]

Power supply capacitor list

[edit | edit source]

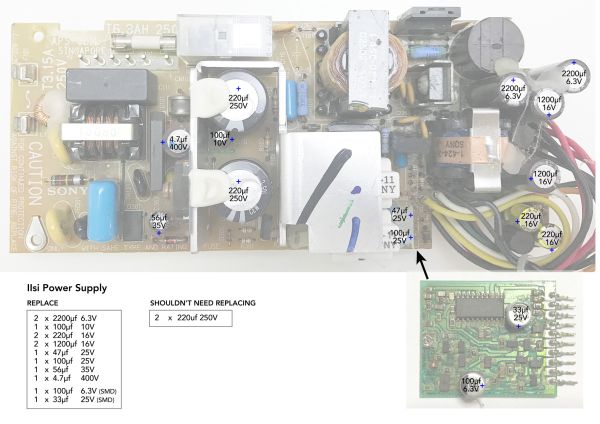

Macintosh IIsi power supply (Sony APS-06M) and its control board with the electrolytic capacitors marked (Recap-a-Mac)
Sony APS-06M (Macintosh IIsi power supply)
Position Value Notes
C101, C102 220 µF 250 V Primary side. Recap-a-Mac: should not normally need replacing
C105 4.7 µF 400 V Primary side
C106 100 µF 10 V
C201, C202 2200 µF 6.3 V
C203, C212 1200 µF 16 V
C221, C222 220 µF 16 V
C302 56 µF 35 V 47 µF on some revisions (Console5)
C401 100 µF 25 V
C402 47 µF 25 V
Control board 33 µF 25 V Surface-mount
Control board 100 µF 6.3 V Surface-mount

Positions are Console5's, and the values agree with Recap-a-Mac's photograph.[6][2] The two control-board parts are easy to miss because they are not on the main board of the supply.

The supply works from rectified mains, and C101 and C102 hold a charge after it is unplugged. Discharge them and confirm with a meter before working on the primary side. Fit replacements of at least the original voltage rating.

Procedure

[edit | edit source]

Apple's take-apart order for the logic board is cover, adapter card, fan, power supply, then the board itself.[7]

  1. Remove the cover: push down on the small tabs with your thumbs while lifting the large tabs with your forefingers. It may snap loudly.[7]
  2. Remove the adapter card and any expansion card: pull straight up on the adapter.[7]
  3. Remove the fan: put your thumbs under it and pull up firmly until it snaps free.[7]
  4. Remove the power supply: press the two metal tabs near its rear and lift it about half an inch, then pull the silver tab towards the floppy drive while lifting the supply out.[7]
  5. Disconnect the hard drive power, hard drive data and floppy cables from the logic board.[7]
  6. With the rear of the case towards you, release the two tabs with your forefingers while pushing on the 120-pin connector with your right thumb, and slide the board forward until it stops.[7]
  7. Lift the board out once the power button clears the rear panel. Do not touch connectors J19 and J20; Apple warns that skin oil harms them.[7]
  8. Photograph the board and note the polarity of every capacitor before removing any.[3]
  9. Remove the old capacitors with hot air, shielding nearby plastic connectors; Ed Retro Tech used craft-knife blades held with springs.[3]
  10. Clean the board: scrub with distilled water and a little soap, rinse with isopropyl alcohol and let it dry for at least 24 hours.[3]
  11. Prepare the pads, fit the new capacitors observing polarity, and inspect for bridges before reassembly.[3]
  12. When refitting the board, make sure the speaker's metal fingers touch the contacts on the underside of the logic board.[7]

The supply comes apart in the same way for its own recap; Ed Retro Tech's article shows the board out of its case and cleaned.[3]

After the recap

[edit | edit source]

Check that the machine starts from the keyboard power key and switches off from Shut Down; both go through the soft-power circuit.[8] Apple publishes no rail tolerances for the IIsi supply; if it will not start, work through the power entries in Macintosh IIsi Troubleshooting.[7]
