Macintosh Quadra 700
The Macintosh Quadra 700 is a Macintosh introduced by Apple on October 21, 1991, together with the Macintosh Quadra 900, as the first machines in the Quadra line, and discontinued on March 15, 1993.[1][2] It uses the Macintosh IIcx/Macintosh IIci case stood on its side, and Apple services all three machines from one manual.[3][1]
 | |

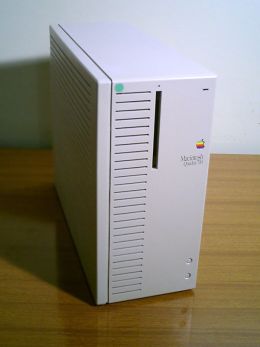

| Macintosh Quadra 700 (photo: All About Apple museum, CC BY-SA 3.0, via Wikimedia Commons) | |
| Specifications | |
|---|---|
| Manufacturer | Apple Computer, Inc. |
| Type | Desktop personal computer (vertical case) |
| Released | October 21, 1991 |
| Discontinued | March 15, 1993 |
| Intro price | US$5,700 |
| CPU | Motorola 68040 at 25 MHz, with FPU |
| Memory | 4 MB on the logic board, four 30-pin SIMM sockets (groups of four); Apple: 20 MB maximum |
| Storage | 80, 160 or 400 MB SCSI hard disk; 1.4 MB SuperDrive |
| Display | Built-in video, 512 KB VRAM expandable to 2 MB |
| Sound | Apple Sound Chip, 8-bit stereo at 44.1 kHz; mono input |
| ROM | 1 MB, with a ROM SIMM socket |
| Connectivity | Built-in Ethernet (AAUI-15) |
| Expansion | Two NuBus slots, one processor-direct slot |
| Power | 130 W peak, 90 W continuous (Service Source) |
| Dimensions | 14.0 × 30.2 × 36.5 cm (5.5 × 11.9 × 14.4 in) |
| Weight | 6.4 kg (14 lb) with hard disk |
| OS / Firmware | System 7.0.1 to Mac OS 8.1 |
| Predecessor | Macintosh IIci |
| Successor | Macintosh Quadra 800, Macintosh Centris 650 |
| Model no. | M5920 |
Identification
edit| Item | Value |
|---|---|
| Model number | M5920[4] |
| Order numbers | M5921LL/A (floppy only), M5922LL/A (80 MB hard disk), M5923LL/A (160 MB)[4] |
| Gestalt ID | 22[1] |
| ROM | 1 MB soldered, ID $067C, with a ROM SIMM socket[1][3] |
| Original system software | System 7.0.1[1] |
Processor and memory
edit- Processor: Motorola 68040 at 25 MHz with the floating-point unit built in; Apple's specification page adds the integrated PMMU and 8 KB of L1 cache.[3][1]
- RAM: 4 MB on the logic board and four 30-pin SIMM sockets filled in groups of four with 80 ns SIMMs. Apple gives 8 MB with 1 MB SIMMs or 20 MB with third-party 4 MB SIMMs.[3][1] EveryMac gives 68 MB with four 16 MB SIMMs.[4]
- Apple's Quadra 700 upgrade procedure warns that 120 ns SIMMs from an older board will not work: use 80 ns SIMMs.[3]
Video
editThe built-in video has 512 KB of VRAM on the board and six VRAM SIMM sockets. Two 256K SIMMs give 1 MB and six give 2 MB; 512K VRAM SIMMs fit but only 256K of each is used.[1] Apple's symptom charts list the VRAM SIMMs as a cure for a dark screen on the Quadra 700.[3]
| Resolution | 512 KB | 1 MB | 2 MB |
|---|---|---|---|
| 512 × 384 | 8 | 24 | 24 |
| 640 × 480 | 8 | 8 | 24 |
| 832 × 624 | 8 | 8 | 24 |
| 1152 × 870 | 4 | 8 | 8 |
Source: Apple.[1] The Service Source's video entry, shared with the IIci, gives only 640 × 480 at up to 8 bits per pixel and 640 × 870 at up to 16 shades of grey.[3]
Sound, storage and ports
edit- Sound: the Apple Sound Chip gives 8-bit stereo sampling at 44.1 kHz and four-voice wavetable synthesis, and drives stereo headphones or other stereo equipment from the sound jack.[3]
- Storage: 1.4 MB SuperDrive; internal SCSI hard disk of 80, 160 or 400 MB.[3]
- Ports: two ADB, two serial, SCSI (DB-25), video (DB-15), sound in and out, and built-in Ethernet.[1] Apple's technical specifications give the Ethernet connector as AAUI-15, Apple's own transceiver interface; the Service Source calls it "AUI-15". Ars Technica notes that the Quadra series was Apple's first with an Ethernet port and that an external transceiver is needed to connect it to 10BASE-T.[1][3][2]
- Expansion: two NuBus slots and one processor-direct slot.[3]
Upgrades
editThe Service Source documents two logic board upgrades in this case: the Macintosh IIci Upgrade (for a IIcx) and the Quadra 700 Upgrade, whose kit contains a Quadra 700 logic board, a new bottom case and a new hard drive power cable. It also covers the Power Macintosh Upgrade Card.[3]
Power supply
editThe Service Source gives 100-240 V AC automatically configured, 50-60 Hz single phase, and a maximum of 130 W with 90 W continuous, not including monitor power; the IIcx and IIci are rated 90 W.[3] Apple's online technical specifications list "Max Watts: 50" and 1.9 A for the Quadra 700 without saying what the figure covers.[1]
Capacitors
editArs Technica reports that the Quadra 700 is one of the few vintage Apple computers with tantalum capacitors on the logic board; most Apple boards of the period used aluminium electrolytics.[2] The power supply is a separate unit; see Macintosh Quadra 700 Capacitor Replacement Guide.
PRAM battery
editApple's check is to replace the PRAM battery below 2.8 V.[3] Apple gives the type as 3.6 V lithium.[1] Lithium leakage is neutralised with bicarbonate of soda, not vinegar.
Service documentation
editThe Service Source has no Adjustments chapter and gives no rail tolerances.
