Atari 2600

Atari 2600
	Atari 2600 4-switch "woodgrain" model (1980-1982)
Specifications
Manufacturer	Atari, Inc.
Type	Home video game console
Released	11 September 1977 (as Video Computer System); NA: September 1977; EU: 1978; JP: October 1983 (as Atari 2800)
Discontinued	1 January 1992
Intro price	US$199 (1977)
CPU	MOS Technology 6507 @ 1.19 MHz (NTSC) / 1.18 MHz (PAL)
Memory	128 bytes RAM (within 6532 RIOT)
Storage	ROM cartridge (2 KB - 64 KB with bank switching)
Display	160 × 192 pixels (NTSC), 160 × 228 (PAL), 128 colors
Sound	TIA custom chip, 2 channel mono
Dimensions	340 mm W × 240 mm D × 64 mm H (6-switch)
Weight	1.36 kg (Heavy Sixer), 1.14 kg (Light Sixer)
OS / Firmware	None
Predecessor	Dedicated Pong consoles
Successor	Atari 5200
Codename	Stella
Model no.	CX2600, CX2600A, 2600 Jr.

The Atari 2600, originally sold as the Atari Video Computer System (Atari VCS), is an 8-bit home video game console developed and manufactured by Atari, Inc. Released in September 1977, it popularized the use of ROM cartridges for game storage and established the modern video game console market. The system is built around the MOS Technology 6507 processor and the custom Television Interface Adaptor (TIA) chip, which handles graphics and sound generation without a frame buffer, requiring precise timing in software.

System Architecture

Sub-system	Specification
CPU	MOS Technology 6507 @ 1.193182 MHz (NTSC) / 1.182298 MHz (PAL) 6502 variant with 13 address lines (8 KB address space)
Graphics/Sound	Television Interface Adaptor (TIA) CO10444 (NTSC) / CO11903 (PAL) Generates video signal in real-time without frame buffer
RAM/I/O/Timer	MOS Technology 6532 RIOT 128 bytes RAM, two 8-bit I/O ports, programmable timer
Video	160 × 192 pixels (NTSC), 160 × 228 (PAL) 128 colors (NTSC), 104 colors (PAL), 8 colors (SECAM)
Sprites	2 players (8 pixels wide), 2 missiles (1 pixel), 1 ball (1 pixel) All sprites can be stretched to 2×, 4×, or 8× width
Background	40-pixel playfield (20-bit register, mirrored or repeated)
Audio	2 independent channels, 4-bit volume, 5-bit frequency control 31 kHz max frequency, square wave and noise generation
ROM Space	4 KB standard, up to 64 KB with bank switching

Memory Map

**6507 Address Space**
Range	Size	Purpose
$0000-$007F	128 bytes	TIA registers (write)
$0030-$003D	14 bytes	TIA registers (read)
$0080-$00FF	128 bytes	RIOT RAM (also mirrored at $0180-$01FF)
$0280-$0297	24 bytes	RIOT I/O and timer
$1000-$1FFF	4 KB	Cartridge ROM (mirrored at $3000, $5000, $7000, $9000, $B000, $D000, $F000)

TIA Register Map

**Key TIA Registers**
Address	Register	Function
$00	VSYNC	Vertical sync set-clear
$01	VBLANK	Vertical blank set-clear
$02	WSYNC	Wait for horizontal sync
$04-$05	NUSIZ0-1	Number-size player-missile 0-1
$06-$09	COLUP0-1, COLUPF, COLUBK	Color registers
$0A	CTRLPF	Playfield control
$0D-$0F	PF0-2	Playfield graphics
$10-$14	RESP0-1, RESM0-1, RESBL	Reset sprite positions
$1B-$1D	GRP0-1	Graphics player 0-1
$20-$24	HMP0-1, HMM0-1, HMBL	Horizontal motion
$2A	HMOVE	Apply horizontal motion
$2C	CXCLR	Clear collision latches

Model Variants

**Production Models**
Model	Years	Description	Key Features
Heavy Sixer	1977-1978	CX2600, thick plastic base	Sunnyvale manufacture, 6 front switches, channel selector
Light Sixer	1978-1980	CX2600, cost-reduced	Taiwan/Hong Kong manufacture, thinner case
4-Switch Woodgrain	1980-1982	CX2600A	Difficulty switches moved to rear, single PCB design
4-Switch Vader	1982-1983	CX2600A	All-black case, same internals as woodgrain
2600 Jr. (Short Rainbow)	1984-1985	Cost-reduced	Smaller form factor, rainbow stripe
2600 Jr. (Long Rainbow)	1986-1991	Final revision	Extended rainbow, slight PCB changes

Motherboard Revisions

Early 6-switch models used a two-board design with the main board housed in thick RF shielding and a separate switch board connected via ribbon cable. The 4-switch models consolidated to a single angled PCB. Key revisions include:

Pre-Rev 14: CD4050 buffer IC for controller inputs (prone to static damage)
Rev 14-15: Added static protection diodes, improved color output
Jr. models: Fully integrated single board, cost-optimized design

General Maintenance

The Atari 2600 requires regular maintenance to ensure reliable operation after 40+ years. Common maintenance tasks include cleaning cartridge slots with isopropyl alcohol, treating oxidized switch contacts with DeoxIT, and ensuring proper ventilation to prevent overheating. The cartridge connector's 24 gold-plated contacts are prone to tarnishing and should be cleaned periodically. Power switches on 6-switch models frequently develop oxidation that can be resolved by working the switch repeatedly or applying contact cleaner through the switch opening.

Troubleshooting Guide

Common failures include blank screens caused by dirty cartridge contacts, power supply issues from failed 7805 voltage regulators, and static-damaged controller ports. The TIA chip is particularly sensitive to failure and typically requires replacement from a donor unit. No video output often indicates oxidized power switch contacts or failed electrolytic capacitors. Audio problems frequently stem from failed 820pF styrene capacitors (C206/C207 on 6-switch, C53/C54 on Jr.) which should be replaced with ceramic equivalents.

Capacitor Replacement

Critical capacitors requiring replacement on all models include the main 2200µF 16V filter capacitor and multiple 4.7µF bypass capacitors. The 6-switch models additionally require replacement of C103/C104 (0.22µF) near the voltage regulator to eliminate video artifacts. Styrene capacitors C206/C207 (6-switch) or C53/C54 (Jr.) commonly fail and cause audio loss. The 7805 voltage regulator should be upgraded from the original 0.5A rated part to a 1A version during any capacitor replacement.

Power Supply

The console uses an external 9V DC power adapter (500mA minimum) with center-positive polarity. Internal regulation provides:

+5V: Main logic supply (should measure 4.85-5.15V)
Unregulated 9V: Direct to TIA for video generation

The 7805 voltage regulator mounted to the RF shield (6-switch) or heat sink (4-switch/Jr.) frequently fails after decades of operation. Symptoms include no power, intermittent operation, or voltage outside specifications.

Controller Ports

The DE-9 controller ports support various peripherals:

Standard joystick: 4 directions + 1 fire button
Paddle controllers: Analog rotation via 1MΩ potentiometer
Driving controller: Continuous rotation encoder
Keyboard controllers: 12-key matrix (0-9, #, *)
Track Ball: Digital pulses for X/Y movement

Port pinout is compatible with Commodore, Atari 8-bit computers, and Sega Master System (single button games only).

Cartridge Slot

The 24-pin (2×12) edge connector accepts cartridges from 2 KB to 64 KB using various bank-switching schemes:

Standard 2K/4K: Direct mapped, no switching
F8 (8K): Atari standard, two 4K banks
F6/F4 (16K): Four banks switched via $FFF6-$FFF9
F0 (Megaboy): 64K with special switching

Cartridges contain mask ROM or EPROM chips, with some including additional RAM (Super Chip) or coprocessors (DPC, Pitfall II).

Video Output

The TIA generates composite video internally, output through an RF modulator on channels 2 or 3 (selectable on some models). The video signal consists of:

Horizontal: 228 color clocks per line (160 visible pixels)
Vertical: 262 lines NTSC (192 visible), 312 lines PAL (228 visible)
Frame rate: 59.92 Hz NTSC, 49.70 Hz PAL

Common video modifications include composite output (bypassing RF modulator) and S-Video separation for improved picture quality.

Audio System

The TIA contains two independent audio channels, each with:

Frequency divider: 5-bit (32 settings)
Audio control: 4-bit waveform/noise selection
Volume: 4-bit (16 levels)

Output is mixed to mono and routed through the RF modulator. Common modifications add stereo output by separating the two TIA audio channels.

Common IC Identification

Atari Part	Standard Part	Function
C010745	MOS 6507	CPU
C010750	MOS 6532	RIOT (RAM/IO/Timer)
C010444	TIA (NTSC)	Television Interface Adaptor
C011903	TIA (PAL)	Television Interface Adaptor
C012173A	CD4050	Hex buffer (early models)

Technical Specifications Summary

Clock Speed: 1.19 MHz (NTSC), 3.58 MHz pixel clock
Instruction Timing: ~1.5 machine cycles per 160 pixels (racing the beam)
Color Palette: 128 colors (16 hues × 8 luminance levels) NTSC
Maximum Sprites: 5 hardware sprites, software multiplexed for more
Playfield: 40 pixels wide, asymmetric or mirrored/repeated

Service Information

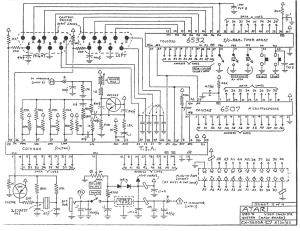

Detailed schematics and service information are available in the Atari Field Service Manual. The system uses all through-hole components, making repairs feasible with basic soldering equipment. Common replacement parts include:
