File:PowerBook Duo MiniDock exploded view (Service Source).png
Size of this preview: 800 × 575 pixels. Other resolution: 1,512 × 1,086 pixels.
Original file (1,512 × 1,086 pixels, file size: 71 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

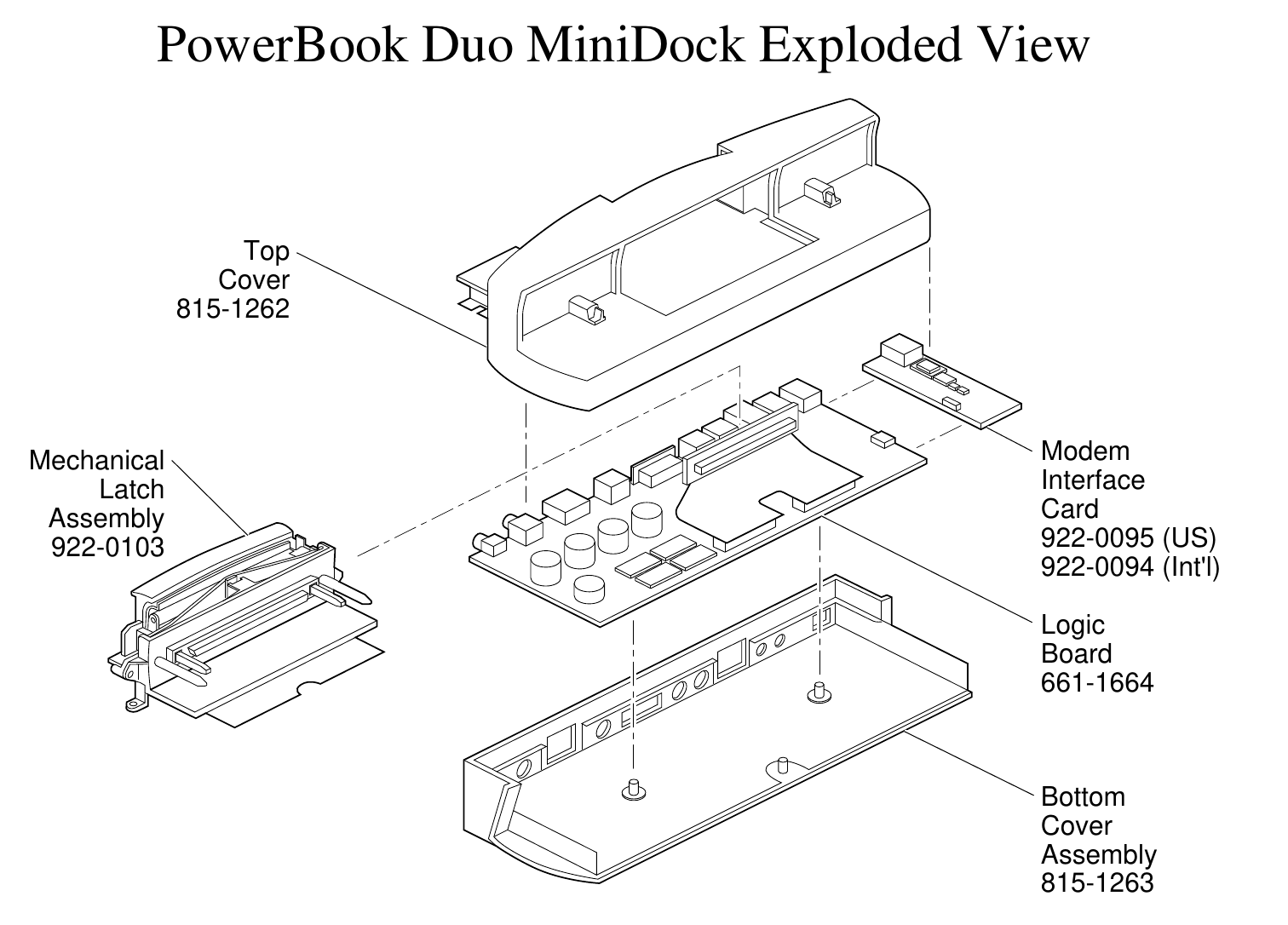

Exploded view of the PowerBook Duo MiniDock with Apple service part numbers for the top cover (815-1262), mechanical latch assembly (922-0103), modem interface card (922-0095 US, 922-0094 international), logic board (661-1664) and bottom cover assembly (815-1263). Rendered from page 61 of Apple's PowerBook Duo MiniDock Service Source (File:PowerBook Duo MiniDock Service Source.pdf) and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:PowerBook Duo MiniDock Service Source.pdf, PDF page 61.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
