The Sinclair ZX Spectrum is an 8-bit home computer released by Sinclair Research in April 1982. This page covers the original rubber-key 16K and 48K machines, board issues 1 to 6A. For the injection-moulded-keyboard model see Sinclair ZX Spectrum+.

The figures on this page come from Sinclair's own ZX Spectrum Service Manual and the Issue 3 circuit diagram, both hosted here.[1][2]

Architecture

[edit | edit source]
  • CPU — Zilog Z80A at 3.5 MHz, divided down by the ULA from the 14 MHz master crystal
  • ROM — 16 KB
  • RAM — 16 KB or 48 KB. The lower 16 KB is 4116 DRAM needing −5 V and +12 V; the upper 32 KB of a 48K machine is 4532/4164
  • ULA — a single Ferranti uncommitted logic array doing the video, the memory contention, the keyboard scan, the tape interface and the beeper
  • Crystals — X1 = 14.000000 MHz on every issue; X2 = 4.433619 MHz, the PAL colour sub-carrier

The Spectrum's ROM is 16 KB. The "48 KB" figure that circulates is the RAM size of the larger model; no 48 KB ROM was ever fitted. A 128K machine carries two 16 KB ROMs, which is a different arrangement again.[1]

The ULA's supply pins

[edit | edit source]

Vcc is pin 14. Pin 40 is ground. This is the single most consequential pin error on this machine: probing pin 40 for 5 V, finding none and condemning a perfectly good ULA. Pin 13 is a second supply at about +3 V, fed through R34.[2]

ULA revisions are not freely interchangeable with board issues; the 6C001E-7 is the only 48K revision documented to work on every board from Issue 1 to Issue 6A. The per-revision detail is on Sinclair ZX Spectrum General Maintenance.[1]

Video

[edit | edit source]

256×192 pixels with an attribute byte per 8×8 character cell, giving 15 distinct colours — eight hues at two brightness levels, with black the same at both. One ink and one paper colour per cell is what produces the machine's characteristic colour clash, and it is an architectural property, not a fault and not something a board revision changed.

Power

[edit | edit source]

The Spectrum takes an unregulated 9 V DC supply through a 2.1 mm coaxial socket — not the 3.5 mm jack of the ZX81, although the pads for one remained on the board up to Issue 4B.[1]

Supply figures
Item Figure Note
Original pack Sinclair UK1400, 1.4 A Reads about 12.5 V unloaded because it is unregulated
At the board +9 V ±2.0 V at the positive side of C50 The regulator input. Below +7 V the regulator will not work correctly
Logic rail +5 V From the on-board 7805 on its heatsink
DRAM rails −5 V and +12 V Generated on board by the TR4/TR5 inverter, for the 4116 lower RAM

A high reading on an unloaded original pack is normal. Judge the supply against the +9 V ±2.0 V figure measured at C50 with the machine running, not against its off-load reading.

There is no 7812 on a ZX Spectrum and the regulator input is 9 V, not 12 V. The −5 V test point is IC6 pin 1, not the collector of TR4.

Sinclair identifies failure of TR4 as a significant cause of problems, and it does not fail alone — the DC-DC converter modification is recommended where either TR4 or the 16K DRAM has blown.[1]

Edge connector

[edit | edit source]

Sinclair identifies the contacts by number and side letter, not by a single sequence. From the Issue 3 diagram:[2]

Supply and control contacts
Contact Signal
3A +5 V
4A +9 V
6A, 7A, 14A 0 V
20A RESET
25A ROMCS
15A VIDEO
20B −5 V
22B +12 V
23B −12 V

RESET is 20A. The table above lists only the edge-connector pins that can be matched to Sinclair's own drawing. Treat any full 1-to-50 Spectrum edge-connector table with suspicion — several in circulation carry signal names that correspond to no Spectrum connector at all, and this wiki could not match them to Sinclair's drawing.

The Spectrum has no composite video socket. Video leaves through the RF modulator; composite requires a modification, which is why so many machines have one.

Storage

[edit | edit source]

Cassette through the EAR and MIC jacks, at approximately 1500 bits per second. Loading times depend entirely on the program's size and on the loader it uses, so no figure is given here.

Board issues

[edit | edit source]

Board issues 1, 2, 3, 3B, 4A, 4B, 5 and 6A were all produced, and they differ in real ways that matter to a repair — the ULA revision each will accept, which resistors change with it, whether TR6 is part of the layout, and whether the six 74LS packages replaced by the second ULA (IC27, Mullard ZX 84/01, on Issue 5 and 6A) are present.[1]

A previous two-row table here claimed an "Issue 1 (1982)" and "Issue 2 (1983)" with fixes for "RAM stability" and "reduced colour clash". Neither claim appears in Sinclair's modification history, and colour clash is not something a board revision can reduce. Both rows have been removed. The real per-issue detail is on Sinclair ZX Spectrum General Maintenance.

Maintenance

[edit | edit source]

Documents hosted here: Sinclair ZX Spectrum Service Manual and the Issue 3 circuit diagram.

Schematic and PCB

[edit | edit source]
Sinclair's Issue 3 circuit diagram

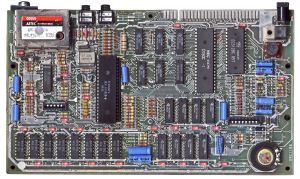

ZX Spectrum 48K main board, Issue 3B
[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.0 1.1 1.2 1.3 1.4 1.5 ZX Spectrum Service Manual, Sinclair Research Ltd. Hosted on this wiki as File:Sinclair ZX Spectrum Service Manual.pdf. Section 1.5 (read/write operations and the ROM links), section 1.11 (power supplies), sections 8.7 and 9.15 (connectors), sections 8.8 and 9.16 (crystals: X1 = 14.000000 MHz on every issue, X2 = 4.433619 MHz), sections 8.10 and 9.19 (integrated circuits), section 4.1.2 (modification history and ULA revisions), section 5.2 (power supply unit) and sections 6.1 to 6.9 (input/output fault diagnosis).
  2. ↑ 2.0 2.1 2.2 ZX Spectrum – Issue 3 circuit diagram, Sinclair Research Ltd. Hosted on this wiki as File:Sinclair ZX Spectrum Issue 3 circuit diagram.png. Source for pin numbers, circuit positions, the speaker drive and the edge-connector assignments.
Retrieved from "https://wiki.retrotechcollection.com/index.php?title=Sinclair_ZX_Spectrum&oldid=12825"
