Macintosh Performa 600CD
 | |

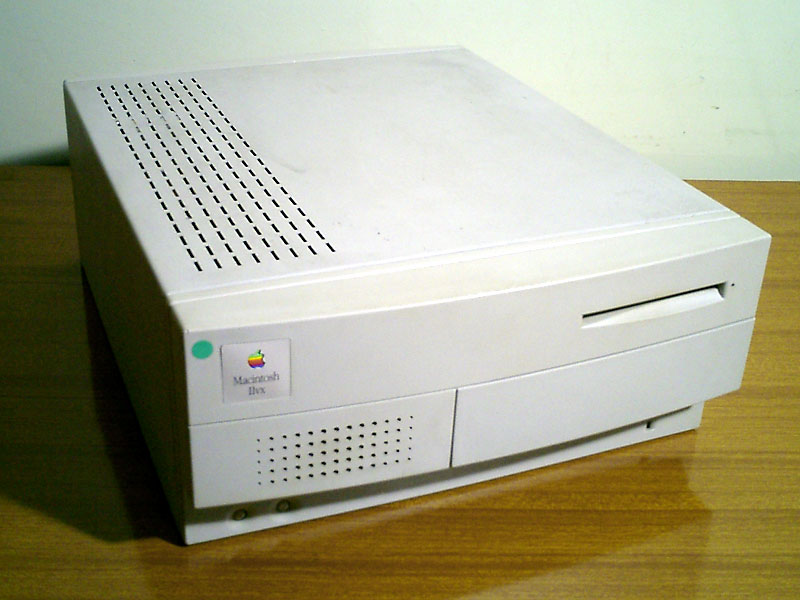

| Macintosh IIvx, which uses the same case as the Performa 600CD (All About Apple museum) | |
| Specifications | |
|---|---|
| Manufacturer | Apple Computer, Inc. |
| Type | Desktop personal computer |
| Released | 14 September 1992 |
| Discontinued | 18 October 1993 |
| CPU | Motorola 68030 at 32 MHz (31.3344 MHz), 16 MHz bus |
| Memory | 5 MB as shipped (4 MB soldered plus SIMMs); four 30-pin SIMM sockets, 68 MB maximum |
| Storage | 160 MB internal SCSI hard drive |
| Display | — |
| Sound | Mono output through the speaker, stereo CD audio at the headphone jack; mono input |
| Graphics | Built in (DB-15); 1 MB VRAM on two 512K VRAM SIMMs |
| ROM | 1 MB |
| FPU / coprocessor | Optional Motorola 68882 (socket on the logic board) |
| Media | Internal 1.4 MB floppy drive; internal double-speed CD-ROM drive |
| Expansion | Three NuBus slots, one 120-pin accelerator slot |
| Power | 85-270 V AC auto-ranging; 112 W DC maximum |
| Dimensions | 6 × 13 × 16.5 in |
| Weight | 25 lb (11.3 kg) |
| OS / Firmware | System 7.1P to Mac OS 7.6.1 |
| Model no. | M1350 (Gestalt ID 45) |
The Macintosh Performa 600CD is the Macintosh Performa 600 with an internal CD-ROM drive. EveryMac lists it with 5 MB of RAM, a 160 MB hard drive and a double-speed CD-ROM drive, under order numbers K0144LL/A and K0145LL/A, which differed in the bundled software and CD-ROM titles.[1] Apple covers the 600 and 600CD on one specification sheet, which gives 14 September 1992 and 18 October 1993 as the introduction and discontinuation dates and 160 MB as the smallest internal hard drive.[2]
The rest of the machine is the Performa 600: a Macintosh IIvx logic board design at 32 MHz without the IIvx's 32 KB cache, and with the 68882 FPU optional.[3] See the Performa 600 page for the full specification, power supply and battery.
CD-ROM drive and video
[edit | edit source]The 1 MB of VRAM allows 640 × 480 at 16 bits per pixel; with 512K the limit is 8 bits per pixel at that size.[4] The CD-ROM drive sits in the 5.25-inch bay at SCSI ID 3; it must not be terminated, while the 3.5-inch hard drive must be. CD audio reaches the logic board through a four-pin connector, plays in mono through the internal speaker and in stereo at the headphone jack.[3] Apple's parts list for the family includes the AppleCD 300, 300i and 600i drives.[4]
Maintenance and repair
[edit | edit source]- Macintosh IIvx General Maintenance
- Macintosh IIvx Troubleshooting: Apple's symptom charts, including the CD-ROM entries.
- Macintosh IIvx Capacitor Replacement Guide
Documentation
[edit | edit source]- Macintosh IIvx/IIvi/Performa 600 Service Source[4]
- Macintosh IIvx IIvi and Performa 600 Developer Note[3]
Related pages
[edit | edit source]References
[edit | edit source]- ↑ Apple Macintosh Performa 600 (CD) Specs, EveryMac—link(accessed 2026-09-30) Performa 600CD: 5 MB RAM, 160 MB hard drive, 2X CD-ROM; order numbers K0144LL/A and K0145LL/A, varying by software and CD-ROM bundle; 1 MB VRAM gives 640 × 480 at 16-bit.
- ↑ Macintosh Performa 600 and 600CD: Technical Specifications, Apple—link(accessed 2026-09-30) 68030 at 32 MHz, 16 MHz bus; optional 68882; no L2 cache; 4-68 MB, 30-pin SIMMs in groups of four; minimum internal hard drive 160 MB; internal CD supported; battery 3.6 V lithium; introduced 9/14/1992, discontinued 10/18/1993; Gestalt ID 45.
- ↑ 3.0 3.1 3.2 Apple Computer, Macintosh IIvx Developer Note (1992), also covering the Macintosh IIvi and Performa 600, File:Macintosh IIvx IIvi and Performa 600 Developer Note.pdf; see Macintosh IIvx IIvi and Performa 600 Developer Note. Printed page numbers: features and Table 1-1 pp. 2-3; internal drives pp. 29-32; Gestalt IDs p. 35.
- ↑ 4.0 4.1 4.2 Apple Computer, Macintosh IIvx, Macintosh IIvi, Performa 600 Service Source, File:Macintosh iivx.vi.perf 600.pdf; see Macintosh IIvx/IIvi/Performa 600 Service Source. PDF page numbers: Memory p. 6; Disk Storage p. 7; Exploded View p. 76.
