Psion Series 3a General Maintenance

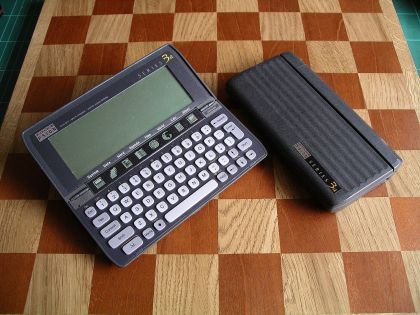

A Series 3a. Three habits keep one alive: open the lid squarely, keep the batteries out when it is stored, and never prise the mainboard with the SSD doors shut.

Preventive maintenance for the Psion Series 3a. Most of it applies equally to the Psion Series 3, Psion Series 3c and Psion Series 3mx, which share the case.

The Series 3a is electrically robust and mechanically fragile. What fails is the hinges, the button bar, the screen ribbon and the battery lead — and every one of those is affected by how the machine is handled.

⚠️ Safety

There are no mains voltages inside. The machine runs from two AA cells, and the external supply is 9 V at 150 mA.

Two things are worth respecting:

• The Vh rail reaches +16 V when writing or formatting a Flash SSD. It is generated by a flyback converter and is only switched on when needed. It will not hurt you, but it will destroy a pack applied at the wrong moment.
• The SSD and expansion door microswitches generate NMIs. Operating them with the machine open and running is not a good idea.

Everything is CMOS. Use an anti-static strap.

Batteries

Power

Item	Specification
Main	2 × AA cells, about 80 hours
Backup	CR1620 lithium coin cell
External	9 V, 150 mA

• Take the AA cells out for storage. A leaked AA in a Series 3 destroys the battery compartment and then the board.
• Replace the CR1620 on a schedule. It is what holds your data while the AAs are out.
• Change one set at a time. With both out, RAM contents are gone.
• Back up to an SSD or a PC before any battery work.
• If the machine reports a flat backup cell that measures fine, the contacts are the likely culprit. A known community fix is a small piece of paper between the cell and the top contact to improve the pressure.

The battery lead problem

This is the fault that makes a Series 3 eat batteries.

The lead connecting the mainboard to the battery contacts is twisted every time the machine is opened and closed. Over years the wires fatigue and fail. The result is a machine that goes through cells at a phenomenal rate, because damaged conductors short together — or one that simply appears to lose the battery connection.

The fix:

1. Remove the screws behind the batteries.
2. Re-seat the two-pin connector. On many machines this alone is a permanent cure.
3. If the wires themselves are damaged, replace them.

Check this before condemning anything else on a battery-hungry 3a.

Opening and closing the lid

The visible hinges fail because of over-opening, which bends the metal pin in the hinge and shears the narrow neck that joins it to the lid.

So:

• Open the lid squarely, with two hands, to a comfortable angle — and stop there.
• Never push the lid past its natural stop.
• Never carry the machine open or let it fall open in a bag.
• Never close it on a stylus, cable or SSD.

The same discipline protects the screen ribbon, which is what produces vertical lines on the display when it deteriorates.

The button bar

The row of application icons between the two halves of the clam is a separate PCB on its own ribbon cable.

• If the button bar stops responding, the usual cause is that its ribbon has come adrift from the lower PCB — the one carrying the loudspeaker and the SSD connectors — often after an impact.
• A documented field fix is to push the ribbon back into its connector with a paperclip, with the lid half closed.
• The bar is sprung. When the case is apart it bows outward, and it will catch when you close the machine unless you press it flat.

SSD slots

• Clean the slot contacts with a foam swab and isopropyl alcohol.
• Keep the doors closed when no pack is fitted. The doors are sensed, and dust in an open slot is not helpful.
• RAM SSDs contain their own button cell. A RAM pack that has forgotten its contents has usually just had a flat cell for years.
• Flash SSDs do not reclaim space from deleted or modified files until the whole pack is reformatted, so a Flash pack that reports itself full when it looks empty is behaving normally.
• Always open both SSD doors before lifting the mainboard. On a 3mx this is critical — prising the board out with the doors shut snaps the plastic tips off the door microswitches.

Keyboard

The keyboard is a rubber membrane under moulded keys.

• Two types exist: one with the keys stuck to the membrane and one without. Lift carefully until you know which you have.
• Keys needing a hard press are dirt. Wash the membrane in warm water with a little washing-up liquid, rinse and dry completely — no heat.
• Clean the PCB pads with isopropyl alcohol on a lint-free swab. Do not abrade them.
• A whole row or column dead is a matrix line, not a key — see the Psion Series 3a Troubleshooting Guide.

Case

• Clean with a barely damp cloth.
• On a 3c, deal with the rubberised coating before it deals with you. The soft-touch finish degrades into something like glue. The reliable fix is controlled stripping with high-purity (90–99 %) isopropyl alcohol on a cloth, working in good ventilation with the batteries out; stop immediately if the plastic underneath whitens, crazes or the printed legends start to smear, and let it dry for several hours before powering up.

Capacitors

The Series 3 family is not a recap candidate.

These are low-voltage SIBO machines running from two AA cells through switch-mode converters, built with surface-mount passives. There is no bulk electrolytic smoothing stage of the kind that ages badly on mains-powered machines of the same era, and — unlike the Psion Organiser II, where the LZ/LZ64 whistle is a documented capacitor fault — no community tradition of recapping Series 3 machines exists, because it does not fix anything people actually report.

The faults people do report are the hinges, the button bar, the screen ribbon, the battery lead and the SSD door sensing. None of those is a capacitor.

Capacitor work is justified only where there is evidence: corrosion damage from a leaked AA cell (which is a corrosion repair, not a recap), or a tantalum that has failed short, which presents as a completely dead machine drawing heavy current the instant power is applied. For the method, see the equivalent section of the Psion Series 5mx Capacitor Replacement Guide, which covers the same situations on a comparable low-voltage surface-mount board.

Preventive maintenance checklist

1. Back up to an SSD or a PC.
2. Remove the AA cells if the machine is going into storage; check the compartment for corrosion.
3. Replace the CR1620 if you do not know its age; check the contact pressure.
4. Inspect the battery lead where it flexes, and re-seat the two-pin connector.
5. Check all four hinges for cracks or a whitening line at the root.
6. Open and close the lid and confirm the button bar sits flush and responds.
7. Clean both SSD slots; confirm both doors close properly and packs are recognised.
8. On a 3c, check the case coating.
9. Confirm the machine keeps time after a brief AA change.

Recommended tools

• Cross-head and jeweller's screwdrivers, plastic spudgers, fine long-nose pliers.
• Anti-static strap.
• Magnifier for inspecting the screen ribbon and hinge roots.
• Isopropyl alcohol (high purity), lint-free and foam swabs.
• Epoxy (Araldite or similar) for hinge repairs.
• Fresh AA cells and a CR1620.
• A known-good SSD for testing.
• A 9 V, 150 mA supply for bench work — useful for testing with the batteries out.

See Recommended Tools for the general workshop kit.
