Latest revision as of 07:45, 1 October 2026

Acorn Archimedes A540
Archimedes A540 with colour monitor and keyboard
Specifications
ManufacturerAcorn Computers Ltd
TypePersonal computer (three-box desktop)
ReleasedJune 1990
Intro price£2,495 ex VAT, no monitor
CPUARM3 on a plug-in processor card
Memory4 MB, expandable to 16 MB with three 4 MB RAM cards
Storage3.5" floppy drive; 100 MB SCSI hard disc on an Acorn SCSI podule
DisplayAnalogue RGB (VIDC1a); high-resolution mono on three BNC sockets
Sound8 channels, stereo (VIDC1a)
OS / FirmwareRISC OS 2.01
PredecessorAcorn Archimedes A440
SuccessorAcorn Archimedes A5000
Model no.AKB50

The Acorn Archimedes A540 was launched in June 1990 as the top model of the Archimedes range, at £2,495 ex VAT without a monitor. It had an ARM3 as standard and was the only Archimedes that could be expanded to 16 MB. It came with a SCSI podule and a 100 MB hard disc.[1]

The A540 has the same hardware as Acorn's R260 RISC iX workstation, without RISC iX installed.[1] Acorn documented it with the R200 series in the Acorn Archimedes 500 Series and R200 Series Service Manual.[2]

Processor

[edit | edit source]

The ARM3 is on a daughter card that plugs into PL3 on the main board.[2] Chris Whytehead's two A540s have an original 26 MHz card (VL86C020), which has no socket for the FPA10, and a 33 MHz card (VY86C020-35) with an FPA10 fitted. With ARMSi v4.0 they measure 14.14 and 16.8 MIPS.[1]

FPA10 floating point accelerator

[edit | edit source]

Acorn released the FPA10 in July 1993 for the A540, the A5000 and the R260, at £99 ex VAT. On the A540 it fits a socket on the processor card. Acorn gave its dissipation as 250 mW and its peak throughput as up to 5 MFLOPS at 26 MHz. Owners of early A540s and R260s might need a free modification to the processor card before fitting one, and RISC iX needs an extra driver.[3]

Memory

[edit | edit source]

A MEMC addresses at most 4 MB, so the A540 has a MEMC1a and 4 MB on the main board and three sockets, SK5, SK6 and SK7, for RAM cards that each carry their own MEMC1a and 4 MB. A machine therefore has 4, 8, 12 or 16 MB.[1][2]

The main board uses thirty-two 1M × 1 80 ns DRAMs in 20-pin ZIP packages, with the master MEMC1a at IC60. Each RAM card has eight 1M × 4 80 ns SOJ DRAMs and its MEMC1a at IC10. Acorn's parts list states that the MEMCs must be Acorn part number 2201,393 to get the right timing.[2] Chris Whytehead records a 12 MHz memory clock on both his A540s, and Acorn and Simtec both made RAM cards.[1] Acorn's parts lists give every MEMC1a in the machine as a 12 MHz part.[2]

Chris Whytehead finds the A540 temperamental after a period out of use, and the RAM cards liable to work loose.[1]

Video and sound

[edit | edit source]

The A540 uses the VIDC1a.[1] Acorn's parts list places it at IC64 and lists IC54 as a 74S00, but the fault-finding pages of the same manual refer to the VIDC as IC54.[2] The three BNC sockets on the rear panel, found only on the A540 and R260, are SK12 to SK14: high-resolution mono video (0.7 V into 75 ohms at a 96 MHz dot rate), vertical sync and horizontal sync.[1][2] Sound is eight channels, each with its own stereo position.[2]

SCSI

[edit | edit source]

The A540's SCSI interface is a podule, not part of the main board, so one of the four slots is occupied from new.[1] Chris Whytehead's machines have the Acorn AKA31 (0173,010) and AKA32 Mk3 (0173,080).[1] Acorn's manual describes the card at component level: a Western Digital WD33C93A SCSI bus controller, an NEC μPD71071 DMA controller and 32K × 16 of static RAM.[2]

Power supply and expansion

[edit | edit source]

The power supply is larger than a standard Archimedes unit and has two fans.[1] Acorn's specification for it:[2]

A540 power supply outputs (Acorn specification)
Rail Minimum Nominal Maximum Current Ripple and noise
+5 V 4.9 V 5 V 5.1 V 1.5–12.2 A 50 mV pk-pk
+12 V 11.4 V 12 V 12.6 V 0–3.2 A 100 mV pk-pk
−5 V −4.5 V −5 V −5.5 V 0–0.3 A 50 mV pk-pk

Total output is 100 W continuous and 122 W surge. The +5 V over-voltage protection trips between 5.8 V and 7.0 V. The input is 198–264 V AC at 47–53 Hz, with a 98–132 V version as a manufacturing option.[2]

The backplane is Acorn part 0186,001 with four slots, and the main board is 0186,000.[1] Each podule slot may draw up to 1 A at +5 V, 250 mA at +12 V and 50 mA at −5 V.[2] Cards on Chris Whytehead's machines include an Atomwide Ethernet IV, a Computer Concepts Colour Card, a Computer Concepts ScanLight interface and an Aleph One 386 PC card.[1]

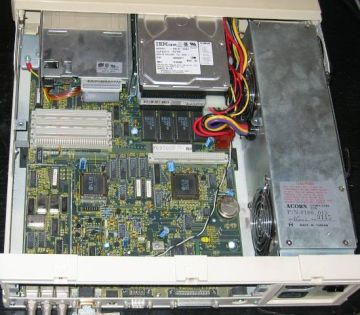

A540 with the backplane, processor card and RAM cards removed. The rear panel with its three BNC sockets is at the bottom.

Capacitors

[edit | edit source]

Acorn's main board parts list mixes radial electrolytics, tantalums, ceramics and surface-mount decouplers in one C-number sequence. The polarised parts are:[2]

A540 polarised capacitors (Acorn parts lists, pp. 6-1, 6-2, 6-6 and 6-7)
Board Designators Value and type
Main board C1–C4, C186–C195 10 µF 10 V tantalum
Main board C5, C6, C13, C19, C20, C21, C24, C27, C30, C35, C37 220 µF 16 V radial electrolytic
Main board C7, C9, C16, C23, C26, C29, C33 47 µF 16 V radial electrolytic
Main board C8, C14 4.7 µF 16 V radial electrolytic
Main board C10, C15 1000 µF 25 V radial electrolytic
Main board C11, C12, C18, C31, C34, C36 10 µF 16 V radial electrolytic
Main board C17 100 µF 25 V radial electrolytic
4 MB RAM card C1–C4 47 µF surface-mount tantalum
Backplane C4, C5, C6 47 µF 16 V axial electrolytic
ARM3 card C1, C2 47 µF 10 V axial electrolytic

C22, C25, C28 and C32, in the middle of the electrolytic run, are 47 nF ceramics. Acorn's video fault procedure checks for +5 V at both ends of L1 and, if it is open, for C9 short-circuit.[2]

Backup battery

[edit | edit source]

The clock and CMOS RAM are backed by BT1, a 1.2 V 280 mAh NiCd cell soldered to the main board, with a foam pad beneath it.[2] It is a rechargeable cell, unlike the two AA alkaline cells of the A440 and the earlier machines.[4]

Acorn's check: if the configuration memory loses its contents and the clock fails, measure IC22 pin 8 with the power off. It should be about 2.8 V; if not, check the charge state of BT1. If the PCF8583 at IC22 always fails on the same data bits, change it. If the clock stops or runs inaccurately, check crystal X3; LK8 gives access to the clock signal.[2]

Old NiCd cells leak electrolyte that corrodes the tracks around them. Remove BT1 from a stored machine before powering it; see Battery Explosion, Capacitor or Corrosion Damage and Battery Refurbishment.

Operating system

[edit | edit source]

The A540 shipped with RISC OS 2.01 (ROMs dated 5 July 1990). Chris Whytehead's first machine has been upgraded to RISC OS 3.11 with the Acorn Universal Boot; his second, from an ex-Acorn employee, still runs RISC OS 2.01 with SJ Research Nexus Level 4 Econet fileserver software.[1] The four RISC OS ROMs are IC47 to IC50.[2]

Serial port

[edit | edit source]

The 500 and R200 series serial port follows RS232, unlike the RS423 port of the earlier Archimedes machines, and the RS423 Drive patch (version 1.24) used on those is not needed.[2]

Maintenance and repair

[edit | edit source]
  • Remove BT1 and inspect the board around it before powering a stored machine.
  • Measure +5 V, +12 V and −5 V against the table above before chasing other faults.
  • Reseat the RAM cards in SK5 to SK7 on a machine that is unstable or reports the wrong memory size.
  • For a dead machine, Acorn's procedure swaps the processor card, MEMC IC60, IOC IC58 and the VIDC in turn, then checks the 24 MHz system clock at LK11 and the 96 MHz oscillator at IC57.[2]
  • Check that both power supply fans turn.
  • If an FPA10 does not work in an early machine, the processor card may need Acorn's modification.[3]
  • Acorn's SCSI drive test reformats the disc and destroys its data.[2] See Hard Drive Maintenance and Repair and, for the Citizen OSDC-65C floppy drive on Chris Whytehead's machines,[1] Floppy Drive Repair.

Acorn's manual treats the power supply as a replaceable module with no user-serviceable parts and gives no component list for it.[2]

Documentation

[edit | edit source]
  • Acorn Archimedes 500 Series and R200 Series Service Manual: part 0486,056, issue 2, June 1991. System description, interface cards, disassembly, functional tests, component-level fault finding and parts lists for the main board, RAM card, backplane, ARM3 card, keyboard, Ethernet and SCSI cards.

See also

[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.00 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.08 1.09 1.10 1.11 1.12 1.13 1.14 Whytehead, Chris. "Acorn Archimedes A540", Chris's Acorns, archived by The Centre for Computing History. Launch, price, RAM cards, SCSI podule, PSU fans, BNC sockets, backplane and motherboard part numbers, and two documented machines with measured figures.
  2. ↑ 2.00 2.01 2.02 2.03 2.04 2.05 2.06 2.07 2.08 2.09 2.10 2.11 2.12 2.13 2.14 2.15 2.16 2.17 2.18 2.19 2.20 Acorn Computers Limited, Acorn Archimedes 500 series / Acorn R200 series Service Manual, part number 0486,056, issue 2, June 1991. System description pp. 1-1 to 1-2; power supply p. 1-15; sockets and podule power p. 1-19; SCSI interface pp. 2-18 onwards; disassembly p. 3-2; fault diagnosis pp. 4-2 and 5-23 to 5-27; parts lists pp. 6-1 to 6-10. Hosted on this wiki: Acorn Archimedes 500 Series and R200 Series Service Manual.
  3. ↑ 3.0 3.1 Acorn Computers Limited, press release "Acorn Releases Floating Point Accelerator", 5 July 1993. Text via Chris's Acorns.
  4. ↑ Acorn Computers Limited, High Performance Computer Systems Model 440 Service Manual, part number 0476,155, issue 1, November 1988, p. 6 (internal batteries). Hosted on this wiki: Archimedes 440 Service Manual.


Retrieved from "https://wiki.retrotechcollection.com/index.php?title=Acorn_Archimedes_A540&oldid=17124"
