Acorn System 1 Maintenance Guide

From RetroTechCollection

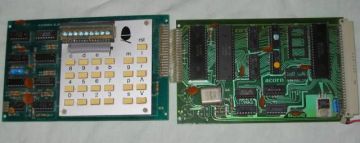

Acorn System 1 6502 CPU Eurocard (part 200,000): R6502P, the two INS8154 RAM/IO devices, 2114 RAM, 74S571 ROMs and the LM340-T5 regulator.

This guide covers preventive maintenance for the Acorn System 1 (Acorn Microcomputer, 1979), a two-Eurocard 6502 machine. The System 1 has no mains wiring and no CRT: it runs on a low-voltage external supply that is regulated to +5 V on each card by an LM340-T5 (7805-type) regulator. Maintenance is cleaning, contact integrity, socket reseating and supply-voltage checks.[1]

Safety

[edit | edit source]

The System 1 contains no mains voltage and no CRT. It is powered from an external low-voltage supply and regulates +5 V on the board. Standard anti-static precautions apply (the 6502, the 8154 RAM/IO devices and the 2114 RAM are sensitive to ESD). The Technical Manual specifies a heatsink on the LM340-T5 regulator.[1]

The two cards

[edit | edit source]

The System 1 is the 6502 CPU card (200,000) and the keyboard/cassette card (200,001), joined by a ribbon. Both cards are socketed throughout, so reseating ICs is the first response to an intermittent fault.

System 1 ICs
Card Devices
CPU (200,000) IC1 R6502; IC2/IC8 INS8154 RAM/IO; IC3/IC4 2114 RAM; IC5/IC6 74S571 ROM; IC9 74LS20; IC10 74LS139; IC11 74LS04; IC12 74LS00; IC13 LM340-T5 regulator
Keyboard/cassette (200,001) IC2 4024; IC3 4011; IC4 4013; IC5 4001; IC6 4024; IC7 LM358 (cassette amp); IC8 7445 (keypad/display decoder)

Regular cleaning

[edit | edit source]
  • Clear dust with a soft brush and low-pressure air.
  • Clean the EuroConnector edge fingers and the inter-card ribbon connector with a soft eraser or contact cleaner — edge-connector oxidation is a common cause of intermittent faults on Eurocard machines.
  • Reseat every socketed IC, especially the 6502 (IC1), the ROMs (IC5/IC6) and the RAM (IC3/IC4).
  • Clean the cassette DIN socket and the keypad contacts.

Power and the regulators

[edit | edit source]

Each card regulates +5 V with an LM340-T5. Verify +5 V at the regulator output and at the IC VCC pins before suspecting a logic fault. Confirm the regulator heatsink is fitted; a regulator running hot into thermal shutdown causes intermittent resets.[1]

Display, keypad and cassette

[edit | edit source]
  • The 8-digit 7-segment LED display and the 25-key hex keypad are decoded by the 7445 (IC8) on the keyboard card; clean the keypad and reseat IC8 if digits or keys misbehave.
  • The cassette interface is the CUTS 300-baud circuit around the LM358 (IC7). Keep the DIN socket clean; most loading problems are the tape or the external recorder.

Capacitor health

[edit | edit source]

Each card carries ceramic decouplers plus a single 15 µF/16 V electrolytic on the regulator. These are low-risk, leaded parts; replace the two electrolytics pre-emptively only if a board is already open or shows ripple-related instability. Full list and procedure: Acorn System 1 Capacitor Replacement Guide.

[edit | edit source]
  • Posidrive/Philips screwdriver and anti-static strap.
  • DC multimeter for the +5 V checks.
  • Contact cleaner and a soft eraser for the EuroConnector.
  • Temperature-controlled soldering iron and solder wick for the two electrolytics.

See Recommended Tools for the general toolkit.

Preventive maintenance checklist

[edit | edit source]
  1. Verify +5 V at both regulators; confirm the heatsinks are fitted.
  2. Reseat all socketed ICs (6502, ROMs, RAM, 8154s).
  3. Clean the EuroConnector fingers and the inter-card ribbon.
  4. Clean the keypad and cassette DIN socket.
  5. Consider replacing the two 15 µF electrolytics while a card is open.
[edit | edit source]

References

[edit | edit source]
  1. 1.0 1.1 1.2 Acorn System 1 Technical Manual (Acorn Microcomputer), Acorn Computers — hosted on this wiki. Source for the CPU-card and keyboard-card IC and capacitor parts lists, the LM340-T5 regulator and heatsink, the construction notes and the circuit description.
