Panasonic FZ-1 General Maintenance

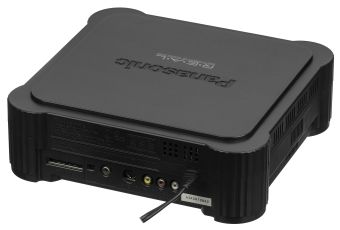

The Panasonic FZ-1 is now more than 30 years old. Its power supply is part of the main board and its capacitors are the usual cause of faults; the tray belt and the laser are the parts of the CD-ROM drive that wear.[1] The disassembly order and part numbers below are from Panasonic's service manual and its supplements.[2]
Safety
[edit | edit source]- Unplug the console before opening it. The POWER button switches the regulators and not the mains, so the transformer is live whenever the plug is in.[3]
- Replace the fuse F1 only with a 3.15 A, 125 V fuse of the same type.[2]
- After any repair, Panasonic specifies an insulation test: short the two pins of the mains plug together, switch the console on, and measure from the plug to each exposed metal part. The reading should be between 4.8 MΩ and 8.8 MΩ, or infinite for parts isolated by design.[2]
Disassembly
[edit | edit source]Before starting, Panasonic's order is to remove any disc, switch off, unplug the mains lead and remove any optional units. Keep the screws from each stage apart; Panasonic warns against interchanging them.[2]
| Mark | Size | Number | Holds |
|---|---|---|---|
| A | 3 × 14 mm | 4 | Top case, from underneath |
| B | 2.6 × 6 mm | 2 | CD-ROM drive |
| C | 2.6 × 8 mm | 4 | CD-ROM drive |
| E | 3 × 10 mm | 2 | Power transformer |
| F | 2.6 × 8 mm | 13 | Two shield plates |
| G | 2.6 × 8 mm | 1 | AV connector plate |
- Turn the console upside down on a flat surface, remove the four screws A and lift the top case off.
- Remove screws B and C from the CD-ROM drive. Lift the front of the drive and unplug the two flat cables from CN620 and CN630 on the main board. Unhook the four hooks to lift the drive's shield plate.
- Remove the two screws E, unplug CN1 and CN3, and lift the power transformer out with the mains lead.
- Unplug the fan at CN660 and lift the fan out, where one is fitted.
- Raise the POWER and OPEN/CLOSE buttons and pull out the light guide panel. Remove the thirteen screws F and lift off the two shield plates. On the first board type, unhook the DRAM board and lift it off its two 50-pin connectors.
- Remove screw G and the AV connector plate, unplug the flat cable from CN541, raise the front of the main board and lift it out of the bottom case.
- The controller port board lifts out once the main board is out.
Reassemble in the reverse order.[2] ConsoleMods reports that later "shiny top" consoles often lack the fan and the steel cover over the power section that the earlier "matte top" consoles have.[4]
CD-ROM drive
[edit | edit source]Static and the laser
[edit | edit source]The laser diode in the traverse deck is easily destroyed by static. Wear an anti-static wrist strap, put a conductive or steel sheet on the bench under the pickup, and keep its flexible board shorted with the shorting pin or a clip while it is out. Panasonic also says not to touch the lens and not to turn the laser power preset, which is set at the factory.[2] The 3DO Development Repo adds that the correct setting can only be found with an oscilloscope, and that turning the preset by trial and error can destroy the laser or blow the fuse.[1]
Tray belt and gears
[edit | edit source]The tray belt stretches with age. A slipping belt shows as a tray that will not open, will not stay open, or ejects as soon as it closes.[1] Panasonic's parts list for the drive (assembly CR-560-BCD-4) gives the loading belt as LMDV0004, the loading pulley as LMDP0013, the load gear assembly as LMXG0026 and the open switch assembly as LMES0026.[5] The drive gear is also listed as a common failure.[1]
Replacing the mechanism or laser
[edit | edit source]A new mechanism comes with a solder short across the pickup's flexible board and a cap over the lens. Remove both once it is fitted.[2] The laser is the Sanyo SF-92.5, shared with the FZ-10 and with the CR-563-B, CR-503-C and CR-503-K computer drives. Many SF-92.5 units on sale have the wrong flexible cable arrangement, so a complete used drive can be the easier source.[6] Supplement IMD9503003S0 lists the parts for converting a drive from a brush spindle motor to a brushless one.[7]
Back-up cell
[edit | edit source]The 32 KB save memory is held by a 3 V lithium cell, BT400, which Panasonic lists as a CR2354 on all three main board types. Panasonic's warning is that the cell can explode if wrongly replaced; fit the same or an equivalent type.[2][8] Check the area around the cell for corrosion whenever the board is out; see Battery Explosion, Capacitor or Corrosion Damage.
Checks while the console is open
[edit | edit source]| Check | What to look for |
|---|---|
| C35 and C36 | Leakage and damaged traces; the most common leakers on the FZ-1[1] |
| C1 and C36 | Electrolyte from C1 on C36, nearby vias and the power switch[9] |
| RAM decoupling capacitors | Leakage[1] |
| C401 | Present; some boards left the factory without it[1] |
| D11 and the regulators | Heat damage to the board; these parts run very hot[1] |
| BT400 | Corrosion around the cell |
| Flat cables to CN620, CN630 and CN541 | Fully seated, contacts clean[2] |
Capacitor values for each board type are on the Panasonic FZ-1 Capacitor Replacement Guide.
Supply check after reassembly
[edit | edit source]With the console on, +5 V should read about 5.0 V and +9 V about 9.0 V; the community drawing of the power section gives 5.00 V and 8.97 V measured.[10] Further test values are in the Panasonic FZ-1 Troubleshooting Guide.
