Panasonic Q Documentation
Two documents for the Panasonic Q (SL-GC10) are hosted here: Panasonic's Japanese operating instructions and a community drawing of the disc mechanism's wiring. The Internet Archive's SL-GC10 items are copies of the same two files; no Panasonic service manual, schematic or parts list for the Q is among them.[1]
Operating instructions (RQT6164)
[edit | edit source]DVD/ゲームプレーヤー 取扱説明書 品番 SL-GC10 is Panasonic's 60-page owner's manual, document RQT6164-S, published by Matsushita Electric Industrial's AVC Network Company with a 2001 copyright; the accessory list on the back cover is dated October 2001.[2] The file is Panasonic's own digital PDF from its Japanese manual download site, not a scan, and has a text layer. It is in Japanese, with furigana throughout. The back cover is the first page of the PDF; from the front cover on, the PDF page number is the printed page number plus one.
Contents
[edit | edit source]With the manual's own page numbers:
- Safety precautions (p. 4)
- Accessories (p. 7), with replacement part numbers for the remote control, the AV lead, the controller and the mains lead[3]
- Discs the Q plays (p. 8)
- Setting up and connecting (p. 10)
- Playing DVDs (pp. 14–15); more features for films and music: resume, chapter preview, menus, subtitles, audio and angle, cinema picture mode, dialogue enhancer, surround, bass plus, muting (pp. 16–21); slow motion, frame advance, markers and repeat play (pp. 22–25)
- Playing games (pp. 26–34): using the controller, first use, the main menu, options, calendar, memory cards and the game timer
- Game error messages (p. 34)
- Music CDs: direct, random and programmed play (pp. 35–37)
- On-screen (GUI) operation (p. 38)
- Initial settings and their list (pp. 41–42)
- Connecting amplifiers and speakers (p. 45)
- Copyright (p. 47) and glossary (p. 48)
- Specifications (p. 50) and questions and answers (p. 50)
- Troubleshooting table (pp. 51–53)

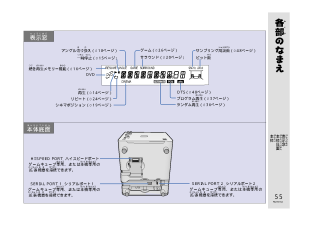

- Names of parts: main unit, display, underside, remote control and controller (pp. 54–57)
- Care, warranty and after-sales service (p. 58), including the eight-year parts retention period
- Optional accessories, with part numbers for cables, Panasonic amplifier and speakers, and Nintendo's memory card, controller, D-terminal and component cables (back cover, PDF page 1)
What it does not contain
[edit | edit source]- No service information: no disassembly, adjustment, voltages, board numbers or parts list.
- No rear-panel diagram among the names of parts; the connections are shown in the setting-up section.
- No battery type for the internal backup battery, which the manual mentions only under the game error messages.
Mechanism drawing (RAJ4601-M (K))
[edit | edit source]Panasonic SL-GC10 (Panasonic Q) CD/DVD Mechanism Schematic Diagram RAJ4601-M (K) is a one-page drawing produced in 2010 and posted to the Internet Archive as a 7z archive. It is a community drawing, not a Panasonic document; the author is not recorded.[4]
Contents
[edit | edit source]- Optical pickup RAF3011A, 30-way connection to FP5201 on board RJB2452AA
- Spindle motor M1, 11-way connection to CN501 on RJB2452AA
- Pickup position motor M2 (MDN2BL3CRQ) and pickup position switch S1 (closed at the spindle, open over the disc), four wires to CN402 on RJB2452AA
- Tray motor M3 (MDN3BL3CRA) and the tray-closed and tray-open switches S2 and S3, five wires to CN504 on the indication and control board
A rendering is hosted as File:Panasonic Q SL-GC10 drive mechanism wiring diagram.png.
What it does not contain
[edit | edit source]Wire colours, connector numbers and part numbers only: no circuit of the boards, no voltages and no mechanical drawing.
Pages that cite these documents
[edit | edit source]- Panasonic Q: specifications, connections, display and controls, drive mechanism.
- Panasonic Q General Maintenance: Panasonic's care instructions, lens cleaner, backup battery, parts retention, pickup and switches.
- Panasonic Q Troubleshooting Guide: Panasonic's troubleshooting table, game error messages, tray switches and pickup.
- Panasonic Q Capacitor Replacement Guide: which board the drive connects to.
