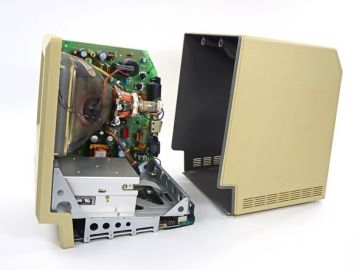

[[File:Macintosh 128K Inside.jpg|thumb|Macintosh 128K Interior]]
[[File:Macintosh 128K Inside.jpg|thumb|right|360px|Macintosh 128K with the case removed]]
Proper maintenance is essential to extending the lifespan and ensuring reliable operation of the '''Macintosh 128K and Macintosh 512K'''. These models, like the later [[Macintosh Plus]], lack internal cooling fans, making regular maintenance crucial for long-term functionality.<ref>{{cite book |title=Apple Service Level 1 The Macintosh Office Technical Procedures |publisher=Apple Computer, Inc. |year=1986 |page=3-12}}</ref> The following sections provide in-depth guidance on cleaning, preventing corrosion, managing battery life, and addressing common failure points.
<templatestyles src="Template:StyledTable/styles.css" />
The '''Macintosh 128K''' and [[Macintosh 512K]] have no fan: the power/sweep board behind the CRT runs hot and relies on convection through the case vents.<ref name="cmrn">Thomas H. Lee, ''Classic Mac Repair Notes'', revision of 31 May 2007 (©2000 Thomas H. Lee; not re-hosted here). https://archive.org/details/Classic_Mac_Repair_Notes Sections 4.1-4.2 (yoke connector J1, power-supply faults), 5.1 (voltage adjustment) and 7.4 (regulator and R56).</ref> Most maintenance on these machines is on that board, its connectors and the PRAM battery, and every job inside the case starts with discharging the CRT. Capacitor work is covered on [[Macintosh 128K/512K Capacitor Replacement Guide]] and fault-finding on [[Macintosh 128K/512K Troubleshooting]].


== Regular Cleaning ==
== Safety ==
Dust accumulation inside the '''Macintosh 128K and 512K''' can lead to heat buildup and potential component failure. As these systems rely entirely on passive cooling through convection vents, periodic cleaning ensures proper operation and longevity.<ref>{{cite book |title=Troubleshooting Your Macintosh |author=Bob LeVitus |publisher=Hayden Books |year=1992 |page=156}}</ref>
{{Warning|'''The CRT holds about 12,000 V after the machine is unplugged.''' Apple's procedure discharges it with a CRT discharge tool clipped to the metal ground lug, repeated to be sure; discharging to anything else can damage the logic board. Follow [[CRT Discharge Procedure]].<ref name="sg1safe">Apple Computer, Inc., ''Apple Service Guide: Macintosh Computers'' (1990), Safety, pp. 1-4 (PDF pp. 5-8). Hosted as [[:File:APPLE MACINTOSH SERVICE GUIDE VOL1 1990.pdf]]; see [[Apple Macintosh Service Guide Volume 1 1990]].</ref>}}


=== Internal Cleaning ===
Apple's rules for working on compact Macintoshes include: do not work alone; remove jewellery; wear safety goggles, because a damaged CRT can implode; keep one hand behind your back when working on a live machine; and never wear a grounding wrist strap, or work on a grounded mat, while the machine is plugged in, while discharging the CRT or while making live adjustments.<ref name="sg1safe" /> The Service Source repeats that a wrist strap must not be worn until the CRT has been discharged.<ref name="ss">Apple Computer, Inc., ''Macintosh'' (''Service Source'' for the Macintosh 128K and 512K). Hosted as [[:File:Macintosh 128k.512k.pdf]]; see [[Macintosh 128K/512K Service Source]].</ref>
Before performing any internal maintenance, '''ensure the Macintosh is unplugged, and the CRT is safely discharged''' using the procedure outlined in the [[CRT Discharge Procedure]] page. Apple's own figure for the anode potential on a compact Macintosh is '''up to 12,000 V DC'''; a 16,000 V figure previously given here has no source. The tube holds that charge after the machine is unplugged, and it is enough to kill. Follow [[CRT Discharge Procedure]] rather than a summary.<ref>{{cite book |title=Apple Macintosh Service Guide Volume 1 |publisher=Apple Computer, Inc. |year=1990 |page=2-3}}</ref>


==== Logic Board Cleaning ====
== Opening the case ==
The logic board should be cleaned using the following procedure:<ref>{{cite book |title=The Dead Mac Scrolls |author=Larry Pina |publisher=Peachpit Press |year=1992 |page=45}}</ref>
Apple's take-apart sequence is: remove the battery compartment cover and the programmer's (reset/interrupt) switch if fitted; remove the four case screws with a long Torx screwdriver; ease the rear housing off with a case-splitting tool; then remove the RFI shield. The edges of the metal chassis can be sharp. The power/sweep board and logic board come out only after the CRT has been discharged, and the power/sweep board also needs the anode cap removed.<ref name="ssta">''Macintosh'' Service Source, Take Apart, Cover, Power/Sweep Board and Logic Board, pp. 1-12 (PDF pp. 24-35).</ref>


# Remove the logic board by sliding it out of the chassis after disconnecting all cables
== Cleaning ==
# Use '''99% isopropyl alcohol''' (IPA) and an '''anti-static brush''' to clean component surfaces
With the machine unplugged and the CRT discharged, clear dust from the vent slots and from the boards, and keep the top and rear vents unobstructed in use. Do not rest anything on the case. For yellowed plastic see [[Retrobrite]].
# Pay special attention to the '''RAM/ROM sockets''' and '''edge connector'''
# For stubborn contamination, a '''fiberglass pen''' can be used on gold contacts
# Allow to dry completely (minimum 30 minutes) before reassembly


Community members recommend using '''cotton swabs with IPA''' for cleaning between IC pins, particularly around the RAM sockets where flux residue commonly accumulates.<ref>{{cite web |url=https://68kmla.org/bb/index.php?threads/macintosh-128k-restoration-deep-cleaning-tips.42189/ |title=Macintosh 128K Restoration - Deep Cleaning Tips |publisher=68kMLA Forums |date=2023-03-15 |access-date=2025-01-25}}</ref>
== PRAM battery ==
The 128K and 512K both have a PRAM battery: Apple's specification gives "CMOS custom chip with 4.5 V, user-replaceable battery backup".<ref name="ssspec">''Macintosh'' Service Source, Specifications, Memory, p. 2 (PDF p. 6).</ref> It is an alkaline cell, Apple part 742-0003, listed on Apple's support site as type 523.<ref name="sg1parts">''Apple Service Guide: Macintosh Computers'' (1990), Tab 1, Parts List, p. 5 (PDF p. 15).</ref><ref name="sp186">Apple, [https://support.apple.com/kb/SP186?locale=en_US "Macintosh 128K: Technical Specifications"], Apple Support. Retrieved 2026-09-30.</ref> It sits behind a door on the back of the case, in a holder on the power/sweep board.<ref name="ssta" /> Because it is alkaline, not lithium, its leakage is cleaned up differently from the lithium cells in later Macs; see [[Battery Explosion, Capacitor or Corrosion Damage]]. Apple gives no replacement interval or replace-below voltage for it. Take the battery out of any machine going into storage.


==== Analog Board Cleaning ====
== Voltage check ==
The analog board requires extra caution due to high-voltage components:<ref>{{cite book |title=Macintosh Repair & Upgrade Secrets |author=Larry Pina |publisher=Hayden Books |year=1990 |page=78}}</ref>
Apple says to verify the supply voltages whenever the logic board or the power/sweep board is replaced.<ref name="ssadj">''Macintosh'' Service Source, Adjustments, Voltage, pp. 1-6 (PDF pp. 61-66).</ref> The check is made at the external drive port with voltage test cable 077-0135, with the machine running: the orange (+12 V) lead must read 11.90-12.75 V and the red (+5 V) lead 4.85-5.15 V. If they are out of tolerance, the regulator on the power/sweep board is adjusted with a plastic alignment tool, +12 V first; if both cannot be brought into tolerance, Apple replaces the board. Keep the rubber hoods on the test-cable plugs, because shorting them together damages the Macintosh. Use a mirror to watch the screen rather than reaching round the machine.<ref name="ssadj" /><ref name="sg1adj">''Apple Service Guide: Macintosh Computers'' (1990), Tab 1, Power/Sweep Voltage Adjustment, p. 7 (PDF p. 17).</ref>


# '''Never use water-based cleaners''' on the analog board
The adjustment is trimmer R56, and it regulates the +12 V rail; the other rails follow it. If +5 V reads low because of a dirty connector, turning R56 to correct it pushes +12 V over specification. Thomas Lee recommends cleaning the contacts of connector J4 (the cable to the logic board) before adjusting anything.<ref name="cmrn" /> The full procedure is on [[Macintosh 128K/512K Capacitor Replacement Guide#Voltage adjustment|the capacitor replacement guide]].
# Focus on dust removal using compressed air at 40-60 PSI
# Clean flyback transformer insulators with IPA to prevent arcing
# Inspect and clean all connectors, especially the '''J4 power connector'''


=== External and CRT Cleaning ===
== Connectors and solder joints ==
The '''plastic case''' should be cleaned with appropriate materials to prevent yellowing and degradation:<ref>{{cite book |title=Chilton's Guide to Macintosh Repair and Maintenance |author=Gene Williams |publisher=Chilton Book Company |year=1990 |page=34}}</ref>
Thomas Lee names cracked solder joints at the four-pin yoke connector J1 on the power/sweep board as the commonest fault on the board: they cause an intermittent, wobbly, narrow or missing picture, or a single vertical line, often changing when the case is tapped. He reflows the J1 pins with the connector halves mated, so the heat does not distort the plastic.<ref name="cmrn" /> Contact problems at J4 cause the "boots, bongs, resets" loop described on [[Macintosh 128K/512K Troubleshooting]].<ref name="cmrn" />


* Use '''mild soap solution''' (1:10 ratio) with microfiber cloth
== Floppy drive ==
* For severe yellowing, see [[Retrobrite]] procedures
The 128K and 512K use a single-sided 400K drive, Apple part 661-76156 (mechanism).<ref name="sg1parts" /> Apple's symptom charts give these first steps:<ref name="sg1ts">''Apple Service Guide: Macintosh Computers'' (1990), Tab 1, Symptom/Cure Chart, pp. 11-13 (PDF pp. 21-23).</ref><ref name="ssts">''Macintosh'' Service Source, Troubleshooting, Symptom Charts, pp. 3-4 (PDF pp. 16-17).</ref>
* '''Never use acetone or harsh solvents''' which can damage the ABS plastic
* A disk will not eject: press Shift-Command-1 (internal drive) or Shift-Command-2 (external), or choose Eject from the File menu; failing that, push a straightened paper clip into the hole beside the drive slot.
* The '''CRT screen''' requires special care:
* A disk cannot be inserted all the way: switch off, then hold the mouse button down while switching on, so that the eject cycle completes.
** Use '''lint-free cloths''' with approved CRT cleaner
* A 400K drive will not boot: if the logic board has Rev. A ROMs and the drive's stepper motor has serial number F518 or higher, fit the Rev. B ROMs, 342-0220-B (ROM HI) at D5 and 342-0221-B (ROM LOW) at D8, notches towards the front.<ref name="sg1rom">''Apple Service Guide: Macintosh Computers'' (1990), Tab 1, ROM Upgrade & ROM Compatibility, p. 16 (PDF p. 26).</ref>
** Apply cleaner to cloth, never directly to screen
** Clean in circular motions from center outward
** For anti-glare coatings, use only distilled water


=== Keyboard and Mouse Cleaning ===
For cleaning and mechanical work on the drive itself see [[Macintosh Floppy Drive Maintenance]] and [[Floppy Drive Repair]].
The '''M0110 keyboard''' and '''M0100 mouse''' require regular maintenance:<ref>{{cite book |title=The Apple Macintosh Book |author=Cary Lu |edition=3rd |publisher=Microsoft Press |year=1988 |page=267}}</ref>


==== Keyboard Maintenance ====
== Programmer's switch ==
# Remove keycaps using a '''keycap puller''' (not screwdrivers which can damage stems)
If the plastic programmer's (reset/interrupt) switch makes the Macintosh reset at random, Apple's cure is to remove it and file it down by about 1/16 in.<ref name="ssmisc">''Macintosh'' Service Source, Troubleshooting, Symptom Charts, Miscellaneous, p. 9 (PDF p. 22).</ref>
# Clean keycaps in warm water with mild detergent
# Clean key switches with '''contact cleaner''' (DeoxIT D5)
# Lubricate stabilizer bars with '''PTFE dry lubricant'''
# Reassemble ensuring proper keycap orientation


The keyboard's '''Alps SKCC Cream''' switches can be restored by carefully opening each switch and cleaning the contacts with IPA.<ref>{{cite web |url=https://www.reddit.com/r/VintageApple/comments/12xyz89/restoring_mac_128k_keyboard_alps_skcc_switches/ |title=Restoring Mac 128K keyboard - Alps SKCC switches |publisher=Reddit r/VintageApple |date=2023-04-20 |access-date=2025-01-25}}</ref>
== Tools ==
Apple's procedures call for:<ref name="ssta" /><ref name="ssadj" /><ref name="sg1adj" />
* a long Torx screwdriver for the case screws, and a case-splitting tool
* a CRT discharge tool
* a voltmeter and voltage test cable 077-0135
* a plastic alignment tool for the voltage and video adjustments
* a mirror, to watch the screen while adjusting from behind
* an IC extractor for the ROMs
See also [[Recommended Tools]].


==== Mouse Maintenance ====
== Maintenance checklist ==
# Remove ball and clean with IPA
# Unplug the machine, remove the case and discharge the CRT to the ground lug.
# Clean internal rollers with '''cotton swabs''' dipped in IPA
# Remove the PRAM battery and check its compartment and holder for leakage.
# Check encoder wheels for dust accumulation
# Inspect the power/sweep board for leaking or bulging capacitors, heat damage and cracked joints at J1; see [[Macintosh 128K/512K Capacitor Replacement Guide]].
# Apply '''silicone lubricant''' to ball bearings if movement is stiff
# Clean the contacts of the J4 cable between the boards.
# Clear dust from the boards and the vents.
# Reassemble, then check +12 V and +5 V at the external drive port and adjust only if they are out of tolerance.


== PRAM Battery Management ==
== Related pages ==

* [[Macintosh 128K]]
'''Both machines have one.''' Apple's Specifications chapter, which covers the 128K and the 512K
together, gives PRAM as "CMOS custom chip with '''4.5 V, user-replaceable battery
backup'''".<ref name="ss128">Apple Computer, ''Macintosh 128K/512K Service Source'' ([[Macintosh 128K/512K Service Source]], [[:File:Macintosh 128k.512k.pdf]]): Specifications → Memory ("PRAM: CMOS custom chip with 4.5 V, user-replaceable battery backup") and Adjustments → Voltage (voltage test cable 077-0135, 11.90–12.75 V orange, 4.85–5.15 V red, regulator on the power/sweep board).</ref> A previous version of the specification here said the 128K has no PRAM
battery and that the 512K gained one in later revisions; that is not what Apple's manual says.

=== Battery ===
* '''4.5 V, user-replaceable''' — Apple's own words, and the reason it is behind a door rather
  than soldered down<ref name="ss128" />
* '''It is an alkaline cell, not lithium.''' That single fact decides the clean-up chemistry:
  alkaline leakage is neutralised with '''white vinegar''', lithium leakage with
  '''bicarbonate of soda'''. Applying the wrong one does nothing useful. See
  [[Battery Explosion, Capacitor or Corrosion Damage]]
* '''Take it out of any machine going into storage.''' The cell is the only consumable in the
  machine that can destroy the board around it

'''No replacement interval and no replace-below voltage are published for this cell''', and the
figures previously given here ("every 2–3 years", "below 4.2 V") could not be sourced. Measure
it, and replace it when it is flat or when it has been left in an unused machine. Apple's
'''3.0 V / 3.2 V / 2.8 V''' replace-below thresholds belong to the later lithium machines and do
not apply to a 4.5 V alkaline cell.

== Checking and Preventing Connector Corrosion ==
Connector oxidation is a primary failure mechanism in vintage Macintosh systems.<ref>{{cite book |title=The Macintosh Bible |author=Arthur Naiman |edition=3rd |publisher=Peachpit Press |year=1991 |page=892}}</ref>

=== Critical Connector Points ===
{| class="wikitable" style="width:100%; text-align:center;"
|+'''Connector Maintenance Schedule'''
|-
! Connector !! Function !! Maintenance Interval !! Cleaning Method
|-
| J4 (Logic-Analog) || Power and video signals || Every 6 months || DeoxIT Gold, cotton swabs
|-
| J7 (CRT Yoke) || Deflection coils || Annual || IPA, inspect for burns
|-
| J8 (Video) || CRT video drive || Annual || Contact cleaner, reseat
|-
| J9 (Flyback) || High voltage || Annual (with discharge) || Visual only, replace if damaged
|-
| DB-19 (Floppy) || External drive || As needed || DeoxIT, compressed air
|-
| DE-9 (Mouse/KB) || Input devices || Every 6 months || Contact cleaner, pin straightening
|}

=== Corrosion Prevention Protocol ===
# Apply '''Stabilant 22''' or similar contact enhancer after cleaning
# Use '''dielectric grease''' on power connectors to prevent moisture ingress
# Install '''silica gel packets''' inside case for humidity control
# Store in climate-controlled environment when possible

== Common Failure Points ==
While robustly designed, the '''Macintosh 128K and 512K''' are susceptible to certain recurring failures due to aging components. Identifying and addressing these proactively can significantly improve reliability.

=== Analog Board Solder Joints ===
One of the most common failure points involves the '''solder joints on the analog board'''. Over time, '''thermal expansion and contraction''' can cause hairline fractures, particularly on components such as the '''flyback transformer''' and '''yoke connector'''.<ref>{{cite web |url=https://www.applefritter.com/content/macintosh-128k-512k-analog-board-solder-joint-failures |title=Macintosh 128K/512K Analog Board Solder Joint Failures |publisher=Applefritter |date=2022-11-08 |access-date=2025-01-25}}</ref>

'''Where to look.''' The joints that carry heat and mechanical load: the '''flyback transformer'''
pins, the '''yoke connector''', the '''horizontal output transistor''' legs, and the pins of the
'''adjustment trimmer'''. Specific designators (T1, J7, Q1–Q3, C1) were previously listed here;
no parts list or schematic for this board is held on this wiki, so the designators could not be
checked and have been removed rather than sent a reader to the wrong component. Identify the parts
by function on the board in front of you.

A classic symptom of this issue is a '''wobbly or flickering image''' that momentarily corrects itself when tapping the case. The "percussive maintenance" temporarily restores connection but indicates immediate repair is needed.<ref>{{cite web |url=https://tinkerdifferent.com/threads/mac-128k-intermittent-video-solved-bad-solder-joints.1823/ |title=Mac 128K intermittent video - SOLVED bad solder joints |publisher=TinkerDifferent |date=2023-07-12 |access-date=2025-01-25}}</ref>

=== Capacitor Health and Replacement ===
Electrolytic capacitors degrade over time, and the '''Macintosh 128K and 512K analog boards''' contain several key capacitors responsible for power regulation and CRT functionality.<ref>{{cite book |title=The Macintosh Bible |author=Arthur Naiman |edition=4th |publisher=Peachpit Press |year=1992 |page=1067}}</ref> Symptoms of failing capacitors include:

* '''Unstable voltage''', leading to erratic system resets or inconsistent operation
* '''A shrinking or dim display''' — a classic symptom of a dried capacitor in the horizontal deflection circuit. A specific value was previously named here and could not be sourced; see [[Macintosh 128K/512K Capacitor Replacement Guide]] and [[Capacitor Failure Symptoms]]
* '''A high-pitched whine or "chirping" sound''', indicating power regulation issues
* '''Visible capacitor damage''' such as bulging, leaking, or venting

The '''class-X capacitor across the mains input''' is the part most likely to fail dramatically, with smoke, a bang and a fish-market smell, and it should be replaced before first power-on after long storage. Once replaced with a modern X2-rated part of the same value it does not need doing again on any schedule. A detailed '''capacitor replacement guide''' is available on the [[Macintosh 128K/512K Capacitor Replacement Guide]] page.

=== Flyback Transformer Issues ===
The '''flyback transformer''' supplies high voltage to the CRT. Signs of failure include:

* Complete loss of video with normal startup chime
* High-pitched whine or crackling sounds
* Visible arcing or corona discharge (purple glow)
* Burning smell from analog board area

A replacement is normally taken from a donor 512Ke or Plus analogue board, which is the same design. '''Apple part number 157-0042 belongs to the flyback on the SE/SE30 analogue board''', a different board, and was previously quoted here for this one; it has been removed.

=== ROM and RAM Socket Issues ===
The '''ROM and RAM sockets''' on the '''Macintosh 128K and 512K logic boards''' can develop oxidation, resulting in boot failures or intermittent crashes.<ref>{{cite web |url=https://68kmla.org/bb/index.php?threads/fixing-sad-mac-errors-socket-cleaning-guide.41234/ |title=Fixing Sad Mac Errors - Socket Cleaning Guide |publisher=68kMLA Forums |date=2023-01-20 |access-date=2025-01-25}}</ref>

'''Socket maintenance procedure:'''
# Remove all socketed chips carefully using a '''chip puller'''
# Clean socket contacts with '''fiberglass pen''' or '''brass brush'''
# Apply '''DeoxIT Gold''' to socket contacts
# Clean chip legs with '''pink eraser''' followed by IPA
# Reinstall chips ensuring proper orientation

=== 400K Floppy Drive Maintenance ===
The '''Sony 400K floppy drive''' (model OA-D34V) requires periodic maintenance to ensure proper operation.<ref>{{cite book |title=The Macintosh Bible |author=Arthur Naiman |edition=2nd |publisher=Peachpit Press |year=1989 |page=645}}</ref>

'''Essential maintenance tasks:'''
* '''Head cleaning:''' isopropyl alcohol on a lint-free swab, '''when read errors appear''' — not
  on a schedule. Hand-cleaning heads carries a real risk of moving or damaging them, so do it
  only when there is a reason to
* '''Rail lubrication:''' a '''silicone''' lubricant, sparingly. Not white lithium grease — it
  stiffens, attracts grit, and on carriage rails of this size it makes the problem worse
* '''Eject mechanism:''' clean the gear train; the failure here is a split plastic gear, not
  dried lubricant
* '''There is no belt.''' Apple's 3.5-inch drives are '''direct drive'''. "Check the drive belt"
  has been removed from [[Macintosh Floppy Drive Maintenance]] for the same reason

The '''eject gear''' is particularly prone to failure due to plastic degradation. Replacement gears are available from specialty suppliers or can be 3D printed using appropriate materials.<ref>{{cite web |url=https://www.thingiverse.com/thing:4789012 |title=Mac 128K/512K/Plus Floppy Drive Eject Gear |publisher=Thingiverse |date=2021-03-15 |access-date=2025-01-25}}</ref>

== Voltage Adjustment — Apple's own procedure ==

'''This is one of only two Macintosh families for which Apple publishes a voltage
adjustment''', and it is worth knowing that, because the same figures have been copied onto
machines whose service manuals contain no voltage adjustment at all.

Apple's Adjustments → Voltage procedure:<ref name="ss128" />

# Set the voltmeter to the '''20 V''' scale.
# Connect '''Macintosh voltage test cable, Apple part number 077-0135''', to the '''external
  drive port'''. ''Apple's caution: shorting the test cable plugs to each other can damage the
  computer. Pull the rubber hoods over the plugs.''
# Connect the '''black''' voltmeter lead between the meter's ground terminal and the computer
  chassis.
# Connect the '''orange''' test lead to the meter's voltage input, switch on, and adjust the
  voltage regulator on the '''power/sweep board''' to between '''11.90 V and 12.75 V'''.
# Switch off, disconnect the orange lead and hood it.
# Connect the '''red''' lead, switch on, and adjust to between '''4.85 V and 5.15 V'''.
# Switch off, disconnect and hood the red lead.

'''Note the upper bound is 12.75 V, not 12.7 V.''' The 12.7 figure circulates widely on this wiki
and elsewhere and is not Apple's.

'''The trimmer sets the 12 V rail.''' The control commonly identified as '''R56''' on this
power/sweep board regulates '''+12 V''', which is why Apple's procedure sets the orange lead
first. Instructions to "monitor the +5 V rail while adjusting R56" were previously given here:
following them pushes +12 V out of specification. Set 12 V first, then confirm 5 V, and if both
cannot be brought inside their bands together, Apple's instruction is to '''replace the
board'''.<ref name="ss128" />

A table of test-point pin numbers, minimum load currents and a −12 V tolerance band was
previously published here. '''Apple gives no such table for this machine''' — the measurement is
made at the external drive port through the test cable, not at pins on the logic board — and it
has been removed.

If the machine will not hold its rails at all, the fault is in the power/sweep board rather than
in an adjustment. Mains voltage and stored charge are present on that board whenever it has been
plugged in; discharge the CRT first, following [[CRT Discharge Procedure]], and verify with a
meter that the primary reservoir capacitors have come down before touching it.

== Thermal management ==

These machines have '''no fan''', and that is by design rather than a defect. The practical
points:

* Keep the top and rear vents clear. Heat leaves through them by convection alone, so anything
  resting on the case defeats the whole cooling scheme.
* Clean the vent slots when they are dusty.
* '''There is no thermal compound to renew and no fan to replace.''' A previous version of this
  section gave a compound-inspection step and a heat-sink service interval; neither applies.

'''Apple publishes no environmental specification for the 128K or 512K.''' The Specifications
chapter of this manual has no Environmental section — unlike the later volumes, which do — so
the operating and storage temperature ranges and humidity figures previously given here had no
source and have been removed. Treat it as an unventilated 1984 consumer appliance: room
temperature, out of direct sun, and not in a sealed cabinet.

== Storage and Transportation ==
Proper storage prevents deterioration during periods of non-use:<ref>{{cite book |title=The Macintosh Bible |author=Arthur Naiman |edition=3rd |publisher=Peachpit Press |year=1991 |page=903}}</ref>

=== Long-term Storage ===
# Clean thoroughly inside and out
# Remove any batteries (512K models)
# Wrap in '''anti-static material'''
# Store in original packaging if available
# Include '''silica gel packets''' for moisture control
# Store in climate-controlled environment

=== Transportation Guidelines ===
* Always discharge CRT before transport
* Use original packaging or equivalent protection
* Transport in upright position
* Avoid temperature extremes during transport
* Allow acclimatization before powering on

== Tools and Supplies ==
Essential tools for Macintosh 128K/512K maintenance:<ref>{{cite book |title=The Dead Mac Scrolls |author=Larry Pina |publisher=Peachpit Press |year=1992 |page=23}}</ref>

=== Basic Tool Kit ===
* '''Long-handle Torx T15 screwdriver''' (case screws)
* '''Phillips #1 and #2 screwdrivers'''
* '''Plastic spudgers''' and '''nylon pry tools'''
* '''IC puller''' for ROM/RAM removal
* '''Digital multimeter''' with frequency counter
* '''CRT discharge tool''' (see [[CRT Discharge Procedure]])

=== Cleaning Supplies ===
* '''99% isopropyl alcohol''' (electronics grade)
* '''DeoxIT D5''' contact cleaner
* '''DeoxIT Gold G5''' contact enhancer
* '''Lint-free swabs''' and '''microfiber cloths'''
* '''Compressed air''' (moisture-free)
* '''Anti-static brush''' (natural bristle)

=== Lubricants and Compounds ===
* '''White lithium grease''' (floppy drive rails)
* '''PTFE dry lubricant''' (keyboard stabilizers)
* '''Silicone dielectric grease''' (connectors)
* '''Thermal compound''' (heat sink maintenance)

== Safety Considerations ==
Working on vintage Macintosh systems requires adherence to safety protocols:<ref>{{cite book |title=Apple Macintosh Service Guide Volume 1 |publisher=Apple Computer, Inc. |year=1990 |page=1-2}}</ref>

=== Electrical Safety ===
* '''Always discharge CRT''' before internal work
* Use '''one-hand rule''' when working near high voltage
* Work on '''non-conductive surface'''
* Keep '''fire extinguisher''' accessible (Class C rated)
* Never work alone on CRT systems

=== Environmental Safety ===
* Ensure '''adequate ventilation''' when soldering
* Dispose of capacitors as hazardous waste
* Recycle batteries appropriately
* Use '''fume extraction''' for flux cleaning

== References ==
<references />

== External Links ==
* [https://68kmla.org/bb/ 68kMLA Forums] - Active vintage Mac community
* [https://tinkerdifferent.com/ TinkerDifferent] - Technical resources and guides
* [https://www.applefritter.com/ Applefritter] - Vintage Apple documentation
* [https://archive.org/details/mac_documentation Archive.org Mac Documentation] - Service manuals and guides

== Apple's own manuals for this machine on this wiki ==
* '''[[Macintosh 128K/512K Service Source]]''' - the source for the voltage adjustment. Apple measures at the '''external drive port''' with '''voltage test cable 077-0135''': orange lead adjusted to between '''11.90 V and 12.75 V''', red lead to between '''4.85 V and 5.15 V''', both set on the regulator on the '''power/sweep board''', and the board replaced if both cannot be brought into tolerance together.<ref name="ss128volt">''Macintosh'', Apple ''Service Source'' (128K and 512K), Adjustments, Voltage - hosted on this wiki as [[Macintosh 128K/512K Service Source]], file [[:File:Macintosh 128k.512k.pdf]] (see [[Macintosh Service Source]]). The same chapter cautions that shorting the test cable plugs to each other can damage the computer, and that a mirror should be used to see the screen rather than reaching around the machine. The Specifications chapter gives a '''4.5 V user-replaceable''' PRAM cell, 105-125 VAC line voltage and 60 W maximum power.</ref>
* '''[[Apple Macintosh Service Guide Volume 1 1990]]''' - Apple's pocket guide. Its Tab 1 gives the same power/sweep voltage adjustment alongside a parts list, logic board identification and a symptom/cure chart for the 128K, 512K, 512K enhanced and Plus.

== Related Pages ==
* [[Macintosh 128K/512K Troubleshooting]]
* [[Macintosh 128K/512K Troubleshooting]]
* [[Macintosh 128K/512K Capacitor Replacement Guide]]
* [[Macintosh 128K/512K Capacitor Replacement Guide]]
* [[Macintosh 128K/512K Service Source]]
* [[Apple Macintosh Service Guide Volume 1 1990]]
* [[CRT Discharge Procedure]]
* [[CRT Discharge Procedure]]
* [[Macintosh Floppy Drive Maintenance]]
* [[Retrobrite]]
* [[Sad Mac Error Codes]]
* [[Sad Mac Error Codes]]
== References ==
<references />


[[Category:Apple Vintage Computers]]
[[Category:Apple Vintage Computers]]
[[Category:Apple Maintenance Guides]]
[[Category:Apple Maintenance Guides]]
[[Category:Maintenance Guides]]

Latest revision as of 15:30, 30 September 2026

Macintosh 128K with the case removed

The Macintosh 128K and Macintosh 512K have no fan: the power/sweep board behind the CRT runs hot and relies on convection through the case vents.[1] Most maintenance on these machines is on that board, its connectors and the PRAM battery, and every job inside the case starts with discharging the CRT. Capacitor work is covered on Macintosh 128K/512K Capacitor Replacement Guide and fault-finding on Macintosh 128K/512K Troubleshooting.

Safety

[edit | edit source]

Apple's rules for working on compact Macintoshes include: do not work alone; remove jewellery; wear safety goggles, because a damaged CRT can implode; keep one hand behind your back when working on a live machine; and never wear a grounding wrist strap, or work on a grounded mat, while the machine is plugged in, while discharging the CRT or while making live adjustments.[2] The Service Source repeats that a wrist strap must not be worn until the CRT has been discharged.[3]

Opening the case

[edit | edit source]

Apple's take-apart sequence is: remove the battery compartment cover and the programmer's (reset/interrupt) switch if fitted; remove the four case screws with a long Torx screwdriver; ease the rear housing off with a case-splitting tool; then remove the RFI shield. The edges of the metal chassis can be sharp. The power/sweep board and logic board come out only after the CRT has been discharged, and the power/sweep board also needs the anode cap removed.[4]

Cleaning

[edit | edit source]

With the machine unplugged and the CRT discharged, clear dust from the vent slots and from the boards, and keep the top and rear vents unobstructed in use. Do not rest anything on the case. For yellowed plastic see Retrobrite.

PRAM battery

[edit | edit source]

The 128K and 512K both have a PRAM battery: Apple's specification gives "CMOS custom chip with 4.5 V, user-replaceable battery backup".[5] It is an alkaline cell, Apple part 742-0003, listed on Apple's support site as type 523.[6][7] It sits behind a door on the back of the case, in a holder on the power/sweep board.[4] Because it is alkaline, not lithium, its leakage is cleaned up differently from the lithium cells in later Macs; see Battery Explosion, Capacitor or Corrosion Damage. Apple gives no replacement interval or replace-below voltage for it. Take the battery out of any machine going into storage.

Voltage check

[edit | edit source]

Apple says to verify the supply voltages whenever the logic board or the power/sweep board is replaced.[8] The check is made at the external drive port with voltage test cable 077-0135, with the machine running: the orange (+12 V) lead must read 11.90-12.75 V and the red (+5 V) lead 4.85-5.15 V. If they are out of tolerance, the regulator on the power/sweep board is adjusted with a plastic alignment tool, +12 V first; if both cannot be brought into tolerance, Apple replaces the board. Keep the rubber hoods on the test-cable plugs, because shorting them together damages the Macintosh. Use a mirror to watch the screen rather than reaching round the machine.[8][9]

The adjustment is trimmer R56, and it regulates the +12 V rail; the other rails follow it. If +5 V reads low because of a dirty connector, turning R56 to correct it pushes +12 V over specification. Thomas Lee recommends cleaning the contacts of connector J4 (the cable to the logic board) before adjusting anything.[1] The full procedure is on the capacitor replacement guide.

Connectors and solder joints

[edit | edit source]

Thomas Lee names cracked solder joints at the four-pin yoke connector J1 on the power/sweep board as the commonest fault on the board: they cause an intermittent, wobbly, narrow or missing picture, or a single vertical line, often changing when the case is tapped. He reflows the J1 pins with the connector halves mated, so the heat does not distort the plastic.[1] Contact problems at J4 cause the "boots, bongs, resets" loop described on Macintosh 128K/512K Troubleshooting.[1]

Floppy drive

[edit | edit source]

The 128K and 512K use a single-sided 400K drive, Apple part 661-76156 (mechanism).[6] Apple's symptom charts give these first steps:[10][11]

  • A disk will not eject: press Shift-Command-1 (internal drive) or Shift-Command-2 (external), or choose Eject from the File menu; failing that, push a straightened paper clip into the hole beside the drive slot.
  • A disk cannot be inserted all the way: switch off, then hold the mouse button down while switching on, so that the eject cycle completes.
  • A 400K drive will not boot: if the logic board has Rev. A ROMs and the drive's stepper motor has serial number F518 or higher, fit the Rev. B ROMs, 342-0220-B (ROM HI) at D5 and 342-0221-B (ROM LOW) at D8, notches towards the front.[12]

For cleaning and mechanical work on the drive itself see Macintosh Floppy Drive Maintenance and Floppy Drive Repair.

Programmer's switch

[edit | edit source]

If the plastic programmer's (reset/interrupt) switch makes the Macintosh reset at random, Apple's cure is to remove it and file it down by about 1/16 in.[13]

Tools

[edit | edit source]

Apple's procedures call for:[4][8][9]

  • a long Torx screwdriver for the case screws, and a case-splitting tool
  • a CRT discharge tool
  • a voltmeter and voltage test cable 077-0135
  • a plastic alignment tool for the voltage and video adjustments
  • a mirror, to watch the screen while adjusting from behind
  • an IC extractor for the ROMs

See also Recommended Tools.

Maintenance checklist

[edit | edit source]
  1. Unplug the machine, remove the case and discharge the CRT to the ground lug.
  2. Remove the PRAM battery and check its compartment and holder for leakage.
  3. Inspect the power/sweep board for leaking or bulging capacitors, heat damage and cracked joints at J1; see Macintosh 128K/512K Capacitor Replacement Guide.
  4. Clean the contacts of the J4 cable between the boards.
  5. Clear dust from the boards and the vents.
  6. Reassemble, then check +12 V and +5 V at the external drive port and adjust only if they are out of tolerance.
[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.0 1.1 1.2 1.3 Thomas H. Lee, Classic Mac Repair Notes, revision of 31 May 2007 (©2000 Thomas H. Lee; not re-hosted here). https://archive.org/details/Classic_Mac_Repair_Notes Sections 4.1-4.2 (yoke connector J1, power-supply faults), 5.1 (voltage adjustment) and 7.4 (regulator and R56).
  2. ↑ 2.0 2.1 Apple Computer, Inc., Apple Service Guide: Macintosh Computers (1990), Safety, pp. 1-4 (PDF pp. 5-8). Hosted as File:APPLE MACINTOSH SERVICE GUIDE VOL1 1990.pdf; see Apple Macintosh Service Guide Volume 1 1990.
  3. ↑ Apple Computer, Inc., Macintosh (Service Source for the Macintosh 128K and 512K). Hosted as File:Macintosh 128k.512k.pdf; see Macintosh 128K/512K Service Source.
  4. ↑ 4.0 4.1 4.2 Macintosh Service Source, Take Apart, Cover, Power/Sweep Board and Logic Board, pp. 1-12 (PDF pp. 24-35).
  5. ↑ Macintosh Service Source, Specifications, Memory, p. 2 (PDF p. 6).
  6. ↑ 6.0 6.1 Apple Service Guide: Macintosh Computers (1990), Tab 1, Parts List, p. 5 (PDF p. 15).
  7. ↑ Apple, "Macintosh 128K: Technical Specifications", Apple Support. Retrieved 2026-09-30.
  8. ↑ 8.0 8.1 8.2 Macintosh Service Source, Adjustments, Voltage, pp. 1-6 (PDF pp. 61-66).
  9. ↑ 9.0 9.1 Apple Service Guide: Macintosh Computers (1990), Tab 1, Power/Sweep Voltage Adjustment, p. 7 (PDF p. 17).
  10. ↑ Apple Service Guide: Macintosh Computers (1990), Tab 1, Symptom/Cure Chart, pp. 11-13 (PDF pp. 21-23).
  11. ↑ Macintosh Service Source, Troubleshooting, Symptom Charts, pp. 3-4 (PDF pp. 16-17).
  12. ↑ Apple Service Guide: Macintosh Computers (1990), Tab 1, ROM Upgrade & ROM Compatibility, p. 16 (PDF p. 26).
  13. ↑ Macintosh Service Source, Troubleshooting, Symptom Charts, Miscellaneous, p. 9 (PDF p. 22).
Retrieved from "https://wiki.retrotechcollection.com/index.php?title=Macintosh_128K/512K_General_Maintenance&oldid=15873"
