Grandstand Crazy Monster Troubleshooting Guide
The Grandstand Crazy Monster is Grandstand's 1983 release of Epoch's Zig-Zag Monster.[1][2] There is no service manual, and only one repair of this hardware has been published: a Korean collector's 2026 repair of an Epoch Zig-Zag Monster with a dim display and faulty controls.[3] Most of what follows is therefore Grandstand's own leaflet and that one repair. Case opening and cleaning are on Grandstand Crazy Monster General Maintenance.
What should happen at power-on
[edit | edit source]- With the Power and Sound switches both on, the game makes an electronic sound and the display lights.[1]
- The skill level is set to Level 1 and "1" appears at the top of the display. Skill Level Select steps through the three levels.[1]
- Start gives a short signal and begins play. At the end of a game, Start begins the next one; there is no need to switch off.[1]
- With the Sound switch off the game plays silently.[1]
Measurements
[edit | edit source]No voltages have been published for this board. The only figure that can be given is the supply: four C cells, nominally 6 V, or a Grandstand Universal Mains Adaptor on negative polarity.[1] Measure the cells under load if the display is dim; weak cells are the leaflet's first suspect for an erratic game.[1]
Symptom checklist
[edit | edit source]| Symptom | Likely cause | Action | Source |
|---|---|---|---|
| Game malfunctions or display is erratic | Weak cells | Fit four fresh C cells | [1] |
| Game runs but the display is dim | Aged electrolytic capacitors in the display supply | Replace the five electrolytics; see Grandstand Crazy Monster Capacitor Replacement Guide | [3] |
| Joystick directions or buttons do not respond | Dirty or worn rubber pads, dirty control-board contacts | Dismantle the control panel and clean the pads and the board | [3] |
| No power on cells | Corroded battery contacts | Remove and clean the contacts | [3] |
| No sound, game otherwise normal | Sound switch off, or the switch's contacts dirty | Check the switch; clean it | [1][3] |
| Works on cells, not on an adaptor, or the other way round | DC socket or its leads; adaptor polarity | Check the socket and leads; use 6 V centre negative | [1][3] |
Known faults on this game
[edit | edit source]Dim display
[edit | edit source]The Zig-Zag Monster in the Korean repair switched on and ran, but its display was dim. The repairer cleaned the board and the tube, tested it, found the display still dim, and replaced all five electrolytic capacitors on the main board; at the next power test the display was bright.[3] This is the only fault on this hardware for which a cause has been published. The values and positions are on Grandstand Crazy Monster Capacitor Replacement Guide.
A tube can also fade on its own. The Handheld Museum's administrator, writing about another Epoch VFD game, says these tubes fade with years of heavy use, unevenly, the most-lit parts first, and that a broken filament wire leaves one area very dim; neither can be repaired.[4] An even dimming that returns to full brightness with new capacitors, as in the Korean repair, is the supply.
Controls
[edit | edit source]The same game's controls were faulty; the repairer dismantled the control pad, serviced it, and reassembled it before the final test.[3] The joystick and buttons work through rubber pads pressing on the green control board, so dirt on the pads or the board is the first thing to clean.[3] Grandstand's leaflet asks players not to press hard on the Action buttons and to move the joystick gently, to avoid damage.[1]
Display faults

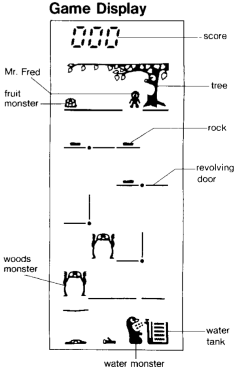

[edit | edit source]The display is a vacuum fluorescent tube mounted on the main board, viewed through an oval magnifying lens and a printed film.[3] Its part number has not been published; a marking ending "8BM24T" is printed on the board beside it.[3] The tube's segments are this game's own shapes (Mr. Fred, the tree, the monsters, the doors and the tank), so a replacement can only come from another copy of the game.[1]
| Symptom | Likely cause | Action | Source |
|---|---|---|---|
| Dim all over | Weak cells; aged capacitors in the display supply | Fresh cells; then replace the five electrolytics | [1][3] |
| Erratic display | Weak cells | Fresh cells | [1] |
| No display, no sound | No power: cells, contacts, socket, Power switch | Work back from the battery contacts with a meter | [3] |
| One area very dim, or the most-used figures faded | Broken filament wire; worn phosphor | Not repairable | [4] |
| Tube cracked or tip broken | Vacuum lost | Not repairable; a tube from another Crazy Monster or Zig-Zag Monster is the only replacement | [1] |
Keep fingers off the transformer while the board is powered with the case open: on Astro Wars, whose supply is built the same way, the winding was measured at about 200 V peak to peak.[5]
Things that are not faults
[edit | edit source]- No sound with the Sound switch off.[1]
- The level always returns to 1 when the game is switched on.[1]
- The game ends with chances left if the water tank empties while there is no fruit on the tree.[1]
- A score of 2,000 ends the game: that is a perfect score.[1]
- The Action buttons do not respond faster to harder presses.[1]
What can be repaired
[edit | edit source]| Part | Repairable? | Notes |
|---|---|---|
| Electrolytic capacitors | Yes | Five on the main board[3] |
| Battery contacts, DC socket, slide switches | Yes | Clean or replace |
| Rubber contact pads and control board | Yes | Clean[3] |
| Display tube | Only from another copy of the game | Game-specific shapes[1] |
| Microcontroller | Not identified | No replacement source is known |
Related pages
[edit | edit source]- Grandstand Crazy Monster
- Grandstand Crazy Monster General Maintenance
- Grandstand Crazy Monster Capacitor Replacement Guide
- Grandstand Universal Mains Adaptor
- Capacitor Failure Symptoms
