Grandstand Programmable Cartridges
Grandstand Colour Programmable SD070 (2)
Inside the Supersportic PC-501 cartridge supplied with a Grandstand Colour Programmable SD070: one General Instrument AY-3-8610 and a few passive parts
Manufacturer Made in Asia for the PC-50x family of consoles and sold under many brands
Type Plug-in game cartridges, each holding one General Instrument game chip
Compatible Grandstand Colour Programmable SD070, the Grandstand SD-050 and Programmable (SD 90 type), and other PC-50x consoles
Model PC-501 to PC-508

The Grandstand programmable cartridges are the PC-50x game cartridges used by Grandstand's programmable TV games, the Grandstand Colour Programmable SD070 among them. A PC-50x cartridge holds no ROM and no program. Each one contains a single General Instrument (GI) game chip that generates a fixed set of games by itself, so changing the cartridge changes the whole game circuit.[1][2] Eight cartridges were made, numbered PC-501 to PC-508.[1]

The same cartridges fit many Asian-made consoles sold in Europe under different names, and the same cartridge can carry different titles and labels and come in black or cream cases. Pong-Story gives the PC-501 as an example: it exists with and without a Hanimex label, under the names Supersportic and Supersportif among others, and Rollet sold it under its own number, 4/305.[1] Which numbers Adam Imports sold in Grandstand packaging is not documented. The photographed SD070 set came with the Supersportic PC-501, whose label carries no Grandstand name.[3][4]

How a cartridge works

[edit | edit source]

Pong-Story describes the chip in each cartridge as containing "most of the game circuits", so that "the console is more an interface than a real videogame system".[1] The console provides the controls, power and the connection to the television.

The photographed Supersportic PC-501 shows the construction:[3][4]

  • One board, marked PC-501 and REV B, with the GI AY-3-8610 as its only chip. Its date code is 8034.
  • An edge connector with contacts numbered 1 to 18 on one side and 19 to 36 on the other.
  • Two trimmers, reached through holes in the label marked "Left bat adjust" and "Right bat adjust". The owner describes them as setting the vertical position of the bats.
  • A shell that opens with one screw and contains two springs.

Pong-Story describes PC-50x boards as bakelite with "poor quality solders".[1]

PC-50x cartridge comparision

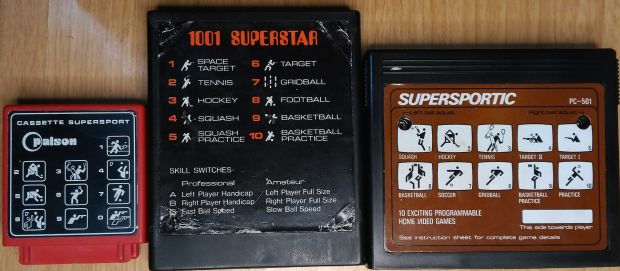

A PC-501 Supersportic (right) beside two cartridges for other systems that also hold an AY-3-8610: the Palson CX 336 "Cassette Supersport" (left) and the Radofin "1001 Superstar" (centre). The three formats differ in size and shape (José Antonio Ortigueira Amor, CC BY 4.0).[5]

The eight cartridges

[edit | edit source]
PC-50x cartridges and their GI chips
No. English titles French title Games GI chip Rarity (Pong-Story)
PC-501 Sports, Supersportic Supersportif Ten: eight ball-and-paddle games and two target games AY-3-8610: named by Pong-Story for its example and seen in the Grandstand-supplied cartridge[1][3] Common
PC-502 Motor cycle Motocyclette Four motorcycle games; Pong-Story calls it a Stunt Cycle clone Not named on the cartridge page. Pong-Story's chip list gives GI's four-game motorcycle chip, used in Atari's Stunt Cycle, as the AY-3-8760, with the AY-3-8765 as its PAL version; Wikipedia gives the AY-3-8760[1][6][7] Common
PC-503 Tank Battle Bataille de chars Two tank battle games AY-3-8710: named by Pong-Story[1] Very rare
PC-504 Racing cars, Grand Prix, Race Car GP Course de voitures GP Two car racing games Pong-Story identifies it with the "Race" game of its chip list, the AY-3-8603 Roadrace; Wikipedia gives the AY-3-8603[1][6][7] Common
PC-505 Submarine Bataille navale Naval battle games: three according to Pong-Story, two according to Wikipedia Pong-Story identifies it with the Submarine chip, the AY-3-8605; Wikipedia gives the AY-3-8605[1][6][7] Common
PC-506 Super Wipeout Jeu de destruction Not described by Pong-Story; ten according to Wikipedia Not named by Pong-Story. Wikipedia gives the AY-3-8606, GI's ten-game Wipe-Off chip[7][6] Common
PC-507 Shooting Gallery Jeux de tir Target shooting games for a light gun Not named by Pong-Story. Wikipedia gives the AY-3-8607, GI's target-shooting chip[7][6] Rare
PC-508 Fundamental 6 jeux de base Six basic games Not confirmed. Wikipedia gives the AY-3-8500, citing a collector's blog that worked it out from box artwork, not from an opened cartridge[7][8] Very rare

Titles, games and rarity are from Pong-Story's cartridge page unless stated.[1] Chips in bold are named outright for that cartridge; the others rest on Pong-Story's cross-references to its chip list or on Wikipedia's table, whose rows are not individually cited.[7]

The Supersportic cartridge

[edit | edit source]

The Supersportic PC-501 came with the Grandstand Colour Programmable SD070.[4] Its label numbers ten games, which the SD070's ten game buttons select:[3]

Supersportic (PC-501) games, as numbered on the label
No. Game No. Game
1 Squash 6 Basketball
2 Hockey 7 Soccer
3 Tennis 8 Gridball
4 Target II 9 Basketball Practice
5 Target I 10 Practice

GI's 1978 data for the AY-3-8610 gives the same ten games, with bats that move both vertically and horizontally, automatic on-screen scoring from 0 to 15, and a ball that speeds up after seven hits unless the fast ball is inhibited.[9]

Care and repair

[edit | edit source]
  • Clean the edge contacts with isopropyl alcohol on a cotton bud, and let them dry before inserting the cartridge.
  • If a cartridge works only when pressed or moved in the slot, open it (one screw on the Supersportic) and inspect the solder joints under a magnifier; reflow any that are dull or cracked.[1][4]
  • Turn the bat-adjust trimmers only if a bat cannot reach the top or bottom of the playfield, and only a little at a time.[3][4]
  • The GI chips are long out of production. A cartridge of the same number from any PC-50x console is the practical replacement for one with a dead chip.[1]

Console-side checks, including how to tell a cartridge fault from a console fault, are on Grandstand Colour Programmable SD070 Troubleshooting Guide.
