Grandstand Model 4600
.jpg) | |
| Grandstand 4600 Colour: score sliders at the top, the game slider and setting switches in the centre, a control pod either side | |
| Specifications | |
|---|---|
| Manufacturer | Grandstand (Adam Imports); made in Hong Kong[1] |
| Type | Dedicated home video game console (Pong-type TV game) |
| Released | Not established; dated 1977 by its owner's blog, but the photographed board has 1981 date codes (see History) |
| CPU | None; General Instrument AY-3-8500 single-chip game IC, with a TBA520 colour decoder IC[2] |
| Memory | None |
| Storage | None |
| Display | RF output on UHF channel 36, colour[1] |
| Sound | Built-in speaker[3] |
| Power | Six UM-2 (C) cells or a 9 V DC 100 mA adaptor[1] |
| OS / Firmware | None |
| Model no. | 4600 |
The Grandstand Model 4600 (Grandstand 4600 Colour) is a colour Pong-type TV game sold in the UK under the Grandstand name. It has six games selected with a slider, two rotary control pods that lift out of the case on their cables, a socket for a rifle, and an output on UHF channel 36.[4][5][1][6] The board in the photographed console is built around a General Instrument AY-3-8500 game chip and a TBA520 colour decoder IC.[2]
History
[edit | edit source]Wikipedia lists two names for the model, "Grandstand Model 4600 Video Sports Centre Endorsed By Kevin Keegan" and "Grandstand Model 4600 Deluxe Colour Video Sports Centre", both six-game colour consoles made in Hong Kong. It gives no release date.[7] The owner of the console in the Commons photographs reports that on the Deluxe version the reset button is on the controllers.[3] His console carries "GRANDSTAND" and "4600 COLOUR" on its panel, without the "Adman" name of the earlier models, and "Made in Hong Kong" on the base.[4][1]
The date is uncertain, and the sources conflict. The owner's blog gives 1977 and says Adam Imports distributed the 4600 in the UK that year.[3] But the game chip on his board is marked "8138 SFA" and the TBA520 "F8133", which in the usual year-and-week form are weeks 38 and 33 of 1981, so that console was built in late 1981 or later.[2] His console's serial number, inside the battery compartment, is 09-81-01, and a second 4600 carries a sticker reading "BATCH NO. 08-80-01".[3][6] The 3600 Mk II, on the same game chip, is dated 1977.[8] No catalogue, advertisement or dated leaflet for the 4600 has been found.
Hardware

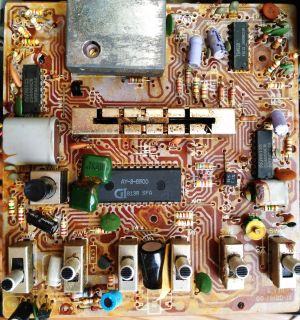

[edit | edit source]| Part | Detail |
|---|---|
| Game chip | General Instrument AY-3-8500, marked "8138 SFA"[2] |
| Colour | TBA520, marked "F8133 INDONESIA", described by the photographer as a PAL TV chroma demodulator[2] |
| Other ICs | Two National Semiconductor CD4069CN / MM74C04N (CMOS hex inverters)[2] |
| RF modulator | Screened can at the top of the board; output on UHF channel 36[2][1] |
| Game select | Long multi-position slide switch across the middle of the board[2] |
| Settings | Six slide switches, SW1 to SW6, along the front edge of the board[2] |
| Board | REV.2 11-00161-00 on the solder side; held to the upper case by five screws[9][3] |
| Power | 9 V DC; socket labelled "DC 9V" at the rear of the case, centre positive according to the owner[1][10][3] |
The AY-3-8500 plays four bat-and-ball games and two target-shooting games, which matches the six positions of the 4600's game slider.[11][4] The photographer describes the second chip, a TBA520, as a "PAL TV chroma demodulator" that produces the colours with the AY-3-8500.[2] General Instrument's own colour encoder for the AY-3-8500, the AY-3-8515, is not fitted.[11][2] The 3600 Mk II uses the same game chip without a TBA520, so check the board in hand before following notes written for the other model.
The photographed board has brown deposits and corrosion around several of the slide switches and nearby parts. The photographer does not say what caused it, and the console works.[2][3] Only two capacitor markings can be read in the photograph (C38, 10 µF; C37, 16 V), so there is no capacitor list for the 4600.[2] Wikidata gives the 4600's chip as an AY-3-8600; the board shows an AY-3-8500.[12][2]
Games
[edit | edit source]The game slider has six numbered positions:[4]
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| PRACTICE | SQUASH | SOCCER | TENNIS | S.L. TARGET | M. TARGET |
Wikipedia gives the last two as "Target" and "Moving Target".[7] The setting switches are SERVE (MANU, AUTO), BAT SIZE, ANGLE and SPEED, the last three grouped under AMATEUR and PROFESSIONAL, with GAME RESET and POWER (OFF, ON) beside them and a SERVE button on the game plate.[4] The photograph of the screen shows two-digit scores at the top and a dotted centre line.[13]
Above the game plate are two sliders marked 0 to 10 under the heading LEFT, SCORE, RIGHT. A collector describes them as manual score counters; the console also shows the score on screen.[6][13]
Controls and rifle
[edit | edit source]Each player has a grey control pod with a rotary knob, labelled LEFT PLAYER and RIGHT PLAYER. Each is a potentiometer in a plastic box. The pods sit in recesses either side of the panel and lift out on their cables, which stay wired into the console.[4][5][6]
A second collector's 4600 came with a "rifle": a black pistol on a grey lead that plugs into the side of the case with a DIN plug. His was missing some parts.[6] It is used for the two target games,[11] and like other light guns of the period it needs a cathode-ray tube television.
Power
[edit | edit source]The base label reads "POWER SOURCE: Use 6 x UM-2 Batteries or by AC Adaptor 9V DC 100mA", and the socket at the rear of the case is labelled "DC 9V".[1][10] Neither gives the plug polarity; the owner of the photographed console describes the socket as taking 9 V DC with the centre pin positive, and ran it successfully from such a supply.[3] Measure any adaptor before connecting it. Grandstand also sold a switchable Grandstand Universal Mains Adaptor (6-9 V DC, with a polarity switch) for its handheld and tabletop games; no source found says it was meant for the TV games.[14]
Open a console that has been in storage and check for leaked cells and corrosion before powering it; see Battery Explosion, Capacitor or Corrosion Damage.
Repair
[edit | edit source]No service manual or schematic for the 4600 has been found. Care, opening the case and fault-finding are covered on the 4600's own pages:
There is no capacitor guide: only two capacitor markings are legible in the one published board photograph, and they are recorded in the maintenance guide. General Instrument's 1978 catalogue of TV game circuits, which covers the AY-3-8500, is available from Pong-Story.[15]
Documentation
[edit | edit source]No instruction leaflet or service information for the 4600 has been found online.
Gallery
[edit | edit source]-
Both control pods lifted out of their recesses -

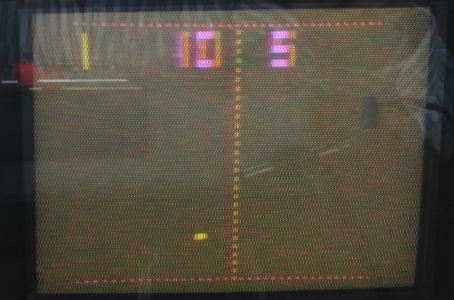

A game on a colour television -

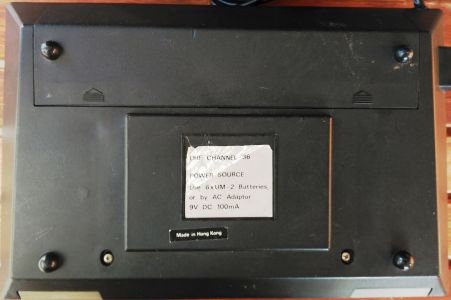

Base: UHF channel 36, six UM-2 cells or a 9 V DC 100 mA adaptor, made in Hong Kong -
The rear: the DC 9V socket and the RF lead -

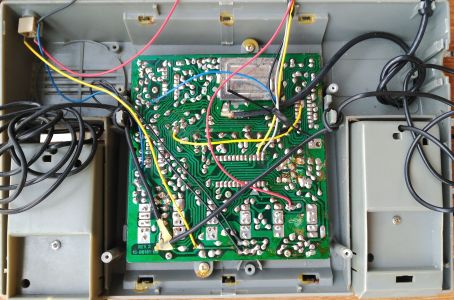

Inside, with the board solder side up
