Grandstand Munchman Capacitor Replacement Guide

From RetroTechCollection
TOMY LSI PACMAN handheld electronic game

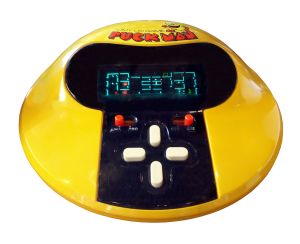

Tomy's Puck Man, the same game as the Grandstand Munchman (うぃき野郎, retouched by Pittigrilli; CC BY-SA 4.0).

The electrolytic capacitors on the main board of the Grandstand Munchman (Tomy Pac Man, Puckman, Puck Man). No parts list or schematic for this game has been published, and the board carries no capacitor reference numbers. The values below were read from owners' photographs of the TN-08 2E108E01 board, looked at at full size; the photograph is named for each one. Where a marking is turned away from the camera or too blurred to read, the table says so.[1][2]

There is no published report of a Munchman fault caused by a capacitor. Replace these parts when one is visibly leaking or bulging, when a repair of the display supply points at one, or as part of a restoration, not as a cure for every fault. See Capacitor Failure Symptoms.

Where the capacitors are

[edit | edit source]

All five electrolytics are on the main board, in and around the display supply at the end of the board away from the microcontroller: the blue transformer, the TO-126 power transistor, the C2785 transistor, the 1SS53 and W06C diodes and the RD12EB3 zener.[2][1] Positions below are described with the board component side up and the display tube along the top edge, as in analo9's photograph 23.

Munchman (TN-08 2E108E01) electrolytic capacitors
Position Value Voltage Read from Notes
Top right, lying flat beside the W06C diode 2.2 µF 50 V analo9, photograph 23[2] Marking fully legible
Centre right, beside the C2785 transistor 3.3 µF 50 V Ingmar's Retroblog, main board photograph IMG_20200524_171747337[1] Lying flat on Ingmar's board, upright on analo9's; grey NTK capacitor
Top right corner, upper of the two upright capacitors beside the transformer Appears to read 3.3 µF 50 V analo9, photograph 23[2] Marking partly turned away; confirm on the part before ordering
Top right corner, lower of the two upright capacitors beside the transformer Not legible Not legible analo9, photograph 23[2] Read the part itself
Bottom right, upright, beside the RD12EB3 zener Not legible 50 V (board silkscreen) analo9, photograph 23[2] Only the silkscreen "50V" is readable

The other capacitors on the board are ceramic or film types: an SL121J, a disc marked 471J and an FZ223Z.[2] These rarely fail and are not usually changed.

Procedure

[edit | edit source]
  1. Take the cells out, open the case and lift out the main board with the display, as described on Grandstand Munchman General Maintenance.
  2. Before removing anything, photograph the board and note the polarity of each electrolytic.
  3. Read the value and voltage on each capacitor you remove. Where this table says "not legible", the part in your hand is the authority.
  4. Fit new radial electrolytics of the same capacitance and at least the same voltage, rated 105 °C. The two capacitors beside the transformer sit against it, so keep the replacements' diameter no larger than the originals.
  5. Do not bend leads across the transformer or the power transistor; keep the lying capacitors lying flat as Tomy fitted them.
  6. Clean flux off with isopropyl alcohol, refit the board and test on cells and on the adaptor.

After the work

[edit | edit source]
  • The game should start with its fanfare and show P-01 at switch-on.[3]
  • Measure about 6 V at the battery terminals on fresh cells.[4]
  • If the display is still dark, the fault lies elsewhere in the display supply; see Grandstand Munchman Troubleshooting Guide.
