Grandstand TV Game 2000 Capacitor Replacement Guide

From RetroTechCollection
Grandstand Adman TV Game 2000 (7)

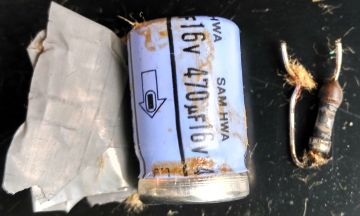

The parts removed from a TV Game 2000: a SAMHWA 470 µF 16 V electrolytic that burst, a crumpled grey mass beside it, and the resistor that the burst knocked off the board, its body charred.

The Grandstand TV Game 2000 runs from 9 V on a single-sided board built around a Texas Instruments TMS1965NL, and every electrolytic capacitor on it is now close to 50 years old.[1][2] One TV Game 2000 has already had a capacitor explode inside the case.[3] No parts list or schematic for the 2000 or for the Gamatic 7600 board it uses has been found, so only one capacitor value is known for certain: that of the part that failed. The other values have to be read from the capacitors on your own board.

Opening the case is described on Grandstand TV Game 2000 General Maintenance, and other faults on Grandstand TV Game 2000 Troubleshooting Guide.

The burst capacitor

[edit | edit source]

The owner of the console photographed for Wikimedia Commons reports that it does not work. A capacitor near the left side of the board, to the left of the other capacitor there, exploded. It scattered its contents through the inside of the console, where they proved hard to clean off and some remain on the board, and it knocked a resistor off its solder pads.[3]

The photograph of the removed parts shows:[4]

  • a capacitor with a lavender sleeve printed "SAMHWA" and "470µF16V", with an arrow marking the negative lead and brown stains on the sleeve;
  • a crumpled grey mass beside it;
  • a resistor whose body is charred, so that its colour bands cannot be read.

The owner does not say why it failed. Age alone can do it, and so can reversed polarity: an electrolytic connected the wrong way round heats up and can vent. The 2000's leaflet warns that an adaptor other than the approved Adman one may damage the console, and the owner gives the socket as centre negative, so a centre-positive adaptor would reverse the supply.[5][3] Check the polarity of any adaptor before it goes near the console. Capacitor Failure Symptoms describes the general signs.

Capacitors on the board

[edit | edit source]
TV Game 2000 electrolytic capacitors (one photographed board)
Position Capacitance Voltage Read from Notes
Burst part; near the left side of the board, left of the other large capacitor (owner's description) 470 µF 16 V File:Grandstand Adman TV Game 2000 (7).jpg SAMHWA, lavender sleeve[4][3]
Large lavender electrolytic at the left edge of the component side Not legible Not legible File:Grandstand Adman TV Game 2000 (6).jpg Only "85°C" can be read[2]
Three white electrolytics with silver tops, left of the CD4071BE Not legible Not legible File:Grandstand Adman TV Game 2000 (6).jpg Printing faces away from the camera[2]
Two small lavender electrolytics, lower left Not legible Not legible File:Grandstand Adman TV Game 2000 (6).jpg [2]

The photographs were examined at full size, including the larger copies on the owner's blog. The board carries no capacitor numbers that can be read from them. For comparison only, the application circuit published for the TMS1965 has one 10 µF electrolytic across the chip's supply;[6] it is a reference design, and the 2000's own values may differ.

Replacing the burst capacitor

[edit | edit source]
  1. Take the cells out, unplug the adaptor and open the base.
  2. Clear every trace of the debris from both sides of the board and from the case, using isopropyl alcohol and a soft brush, then look at the tracks and parts underneath for corrosion. See Battery Explosion, Capacitor or Corrosion Damage for cleaning electrolyte residue.
  3. Find the empty position. The owner places it near the left side of the board, to the left of the remaining large capacitor;[3] the published photographs do not show the empty pads clearly, so confirm it on the board itself. Look also for the two empty pads of the resistor that was knocked off.
  4. Fit a new 470 µF electrolytic rated at 16 V or more and 105 °C, with the negative lead to the negative pad. If the board is not marked, trace the pads to the supply rails to find which is which.
  5. The resistor's value cannot be read from the charred part.[4] Find it from another Gamatic 7600 board, or by tracing the circuit and working out its job. Do not fit a guessed value.
  6. Before closing the case, check the remaining electrolytics: they are the same age.

Replacing the other capacitors

[edit | edit source]
  1. Photograph the board before removing anything, so that every capacitor's position and polarity is recorded.
  2. Work on one capacitor at a time. Read its capacitance and voltage from the sleeve, turning it gently if the printing faces the wrong way, and note which lead is negative.
  3. Desolder it from the solder side with a pump or braid. Copper pads on old single-sided boards lift easily, so do not hold the iron on a pad for long.
  4. Fit a capacitor of the same capacitance, the same or a higher voltage rating, 105 °C, with the same lead spacing.
  5. Record the values you find. A list for this board has never been published.
[edit | edit source]
  • Temperature-controlled soldering iron, desoldering pump or braid, flux, isopropyl alcohol and a brush.
  • Multimeter; a capacitance or ESR meter is useful for checking the parts that come out.
  • Radial electrolytic capacitors from a reputable maker (Nichicon, Panasonic, Rubycon or similar), 105 °C.
  • A current-limited bench supply set to 9 V for the first power-up.

Checks after recapping

[edit | edit source]
After recapping a TV Game 2000
Check Expected Source
Supply 9 V [1]
Current About 40 mA (360 mW at 9 V) [1][7]
TMS1965 pin 4 to pin 2 6 to 7 V [6]
Picture Steady playfield, both bats and the scores on UHF channel 30 [5]
