Grandstand Astro Wars Instructions controls drawing
The Astro Wars controls as drawn in Grandstand's leaflet: joystick, POWER slide switch, SELECT, START and FIRE, with the leaflet's batteries box.

Care, cleaning and opening of the Grandstand Astro Wars, the battery-powered space game with a vacuum fluorescent display (VFD) that Epoch made in Japan and Grandstand sold in the UK from 1981. Epoch sold the same game in the USA as Galaxy II, and repair accounts for either name apply to both.[1][2] No Grandstand or Epoch service manual or schematic has been found. What follows comes from the Grandstand and Epoch leaflets, an owner's parts list and the repair logs, forum threads and videos of owners who have opened these games since 2015. Fault-finding is on Grandstand Astro Wars Troubleshooting Guide, and the four electrolytic capacitors are listed on Grandstand Astro Wars Capacitor Replacement Guide.

The Astro Wars at a glance

[edit | edit source]
Astro Wars: what is inside
Part Detail
Case Silver hood over a black base, with a separate black control panel at the front[3][4]
Fixings Seven cross-head screws on the underside: six round the edge and a smaller one in the middle[5][6]
Cells Four C cells (Duracell MN1400) in a compartment under the base[1]
Adaptor 6 V DC, 250-300 mA, centre negative (Epoch); the Grandstand Universal Mains Adaptor set to negative (Grandstand)[7][1]
DC socket On the right-hand side; it disconnects the cells when a plug is inserted[8][3]
Main board 19096 on the component side, carrying the display, the NEC μPD553C microcontroller (D553C 153), the TY-33 transformer and the power transistor S02 (D882)[2][9]
Control board 96062: POWER slide switch and the SELECT, START and FIRE pads[2][10][11]
Joystick A rocker switch on a small board of its own, joined by a three-wire flat cable[12][13]
Display NEC FIP10xM20T VFD, cyan and red, behind a plate of coloured filter strips and a Fresnel magnifier[2][11]
Sound Piezo sounder, with no volume control or sound switch[14][13]

Before you start

[edit | edit source]
  • Take the cells out before opening the case. A dead game can be run from a bench supply set to 6 V with a current limit; one repairer started with the limit low and raised it slowly while feeling the power transistor for heat.[15][16]
  • Many of these games have been opened before. Look for missing or loose screws, a power switch refitted the wrong way round and flat cables that have been strained.[17][18]
  • The board is soldered with leaded solder; one owner found a conformal coating on it.[6]
  • The display is a single glass tube. Do not bend it or lever against it; the diode S06 sits under its lower edge and is the part most often reached past it.[15]

Opening the case

[edit | edit source]
Astro wars

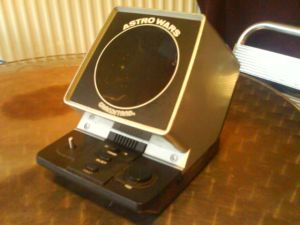

A Grandstand Astro Wars: the silver hood with the display window sits on the black base, and the black control panel carries the joystick, POWER, SELECT, START and FIRE.

The order below is taken from several owners' videos; they agree on the seven screws and on the hood lifting forward off the base.

  1. Take out the cells. The battery cover slides off; many games have lost theirs (see Batteries and battery contacts).[12][18]
  2. Turn the game over and remove the seven cross-head screws on the underside: six round the edge and a smaller one in the middle at the back. Some screws turn but will not drop out of their posts, and leaving one in can crack the plastic when the case is pulled apart.[5][8][18]
  3. Keep the game upside down while separating it. The SELECT, START and FIRE buttons, the fire button's spring and the power slider are loose in the control panel and fall out if it is turned the right way up.[5][12][11]
  4. Hold the control panel and pull the silver hood up and forward off the base. It can need some wiggling or prying.[3][6][5] Philip Bryden counts four screws for the hood and three smaller ones for the control section.[3]
  5. The Fresnel magnifier and the starry backdrop are inside the hood and come out separately for cleaning; the lens lifts out after the screw at one end is undone.[19][5]
  6. Lift off the control panel to reach the POWER switch, the rubber pads with their carbon contacts, the fire button spring and the felt pad over the joystick.[11][12]
  7. Four screws hold the black plate that carries the coloured filter strips in front of the display.[11][8]
  8. The main board is held by four screws from the front. To take the boards out of the base, unsolder the two battery wires (Bryden notes the negative goes to the top terminal and the positive to the bottom) and free the DC socket; the joystick board and control board stay joined to the main board by their flat cables.[3][17][8]

Reassembly. Fit the control panel with its three screws first and then the hood, which keeps the buttons in place.[4] Another method is to load the switches and the fire button with its spring into the inverted panel and lower the case onto it.[8] Bryden found that reassembling upside down let the piezo sounder fall out of its mount, and taped the buttons in instead.[3] Check that the fire button spring sits centrally, or the button feels wrong.[5] Do the screws up gently: a screw post on one game had snapped from overtightening and another had a stripped thread.[8][5]

Cleaning

[edit | edit source]
  • Grandstand's care note: move the joystick gently, do not press hard on the FIRE button, do not leave the game in the sun and do not let it get wet.[1]
  • The hood, base and control panel can be washed once the electronics are out. Keep water away from the metal parts (springs, tabs and the battery plate), which rust, and from the printed title sticker.[8]
  • The front window and the Fresnel lens are plastic. One repairer removed the cloudiness from a front window with a light polish and cleaned its back with glass cleaner; the window was clearer afterwards but still showed some crazing.[19] An old Fresnel lens can be brittle: a corner broke off one when it was refitted.[20]
  • Debris such as packing paper or tape can collect behind the front lens; it comes out when the lens is lifted.[5]

Batteries and battery contacts

[edit | edit source]
Epoch Galaxy II underside with 3D-printed battery cover
Underside of an Epoch Galaxy II, the same hardware as Astro Wars, with a 3D-printed battery cover in the compartment under the base (YoxxxoY Jorge, CC BY).

The game takes four C cells; Grandstand recommends Duracell MN1400 and says the game will not work properly on weak batteries. If it malfunctions or the display becomes erratic, check or replace them first. Switch off after play and remove the cells if the game is not used for a long time.[1]

  • Cells left in for years leak. Games stored in lofts with their batteries in turn up with corroded terminals and electrolyte on the board.[21] Light corrosion on the springs can be cleaned off with a small rotary tool or abrasive; one water-damaged Galaxy II had its rusted contacts buffed with scouring powder.[6][16]
  • A stretched contact spring can be unsoldered, reformed with pliers and refitted. The same battery contact is used in the Grandstand Star Force.[19]
  • The cover is often missing, and the cells tend to spring out while they are being loaded.[19][18] 3D-printable replacements exist; one design is listed by its designer as fitting Astro Wars, Galaxy II, Scramble, Firefox F-7 and Star Force among others, and reproduction covers are sold online.[22][12]

DC socket and adaptor

[edit | edit source]

The DC socket is on the right-hand side of the case. Epoch specifies 6 V DC at 250-300 mA with the centre pin negative, and Grandstand's leaflet says only to set the Universal Mains Adaptor's polarity switch to negative.[7][1][8] Owners who power these games from a bench supply set it to 6 V with negative polarity at the socket.[23][3] See Grandstand Universal Mains Adaptor.

  • The game has no protection against reversed polarity. One repairer added a series diode for that reason.[24]
  • The wrong adaptor is the commonest cause of damage reported by repairers. One Scramble arrived with a 9 V positive-centre adaptor that read nearly 13 V off load; the same repairer found phone chargers and other ill-fitting supplies behind many blown power transistors.[11] Owners have traced failed parts to a wrong adaptor plugged in years earlier.[25][26][27] Measure any adaptor's voltage and polarity before connecting it.
  • The socket has a switch inside it. The battery positive (the red wire) runs through a spring contact that a plug pushes open, so the adaptor disconnects the cells.[3][6][28] When that contact is dirty or bent, the game works on the adaptor but not on batteries. Contact cleaner cured one; on another the spring leaf had to be reformed inside the riveted socket.[3][29] With no plug in, there should be continuity from the battery wire through the socket to the board.[18]

Controls

[edit | edit source]

Power switch

[edit | edit source]

The POWER slide switch bridges two contacts on the control board.[6] When it is unreliable, clean the contacts with alcohol or contact cleaner, bend the contact leaves up slightly for more pressure, and put a little grease on the slider.[18][19][28] On one game the switch only worked once the control section was screwed down properly.[3] The switch is handed and can be refitted the wrong way round.[17]

SELECT, START and FIRE

[edit | edit source]

The three buttons press rubber pads with carbon contacts onto the control board. Clean the pads and the board contacts with isopropyl alcohol; white corrosion on the contacts is common.[8][18][11] A FIRE button that works when its contacts are bridged needs a clean pad and clean contacts; switch cleaner on the pad cured one.[5]

  • The FIRE button has a coil spring. A spring that has slipped out of place or lost its bounce makes the button feel dead; it can be stretched slightly or reseated.[18][19][5]
  • On a Galaxy II the fire spring had worn through the control board and shorted the button line to ground, making FIRE intermittent. An insulating grommet and tape over the worn spot cured it.[14]

Joystick

[edit | edit source]

The joystick is a rocker switch on its own board, under a felt dust pad, with a three-wire flat cable to the main board.[12][11] Its weak point is that cable where it joins the joystick board: bpharoah found its three pins almost unsoldered, and retro_restos found a conductor snapped by an earlier repairer and trimmed and resoldered it.[13][18] On two games a sluggish or erratic joystick was cured by cleaning its contacts.[18][28] If the stick itself breaks off, replacement rockers are hard to find and a joystick board from a donor game is the practical fix.[12]

The flat cables tire with handling. On one game both the joystick cable and the control board cable broke off during a long repair; keep the boards supported and avoid flexing the cables.[15]

Display, filters and magnifier

[edit | edit source]

The display is a glass VFD whose phosphors glow cyan and red. The other colours come from strips of tinted film taped to the black plate in front of it, and the Fresnel lens in the hood magnifies the whole display.[2][21][11][14]

  • On games that have been run hot, the filter strips burn and distort and their tape lets go.[11] Reattach loose strips in their original positions before the plate goes back.
  • The getter, the dark mirror patch inside the tube, should still be black; one repairer judged a tube by this and said a cracked tube goes whitish.[6] A broken tube cannot be repaired, and a replacement must come from a scrapped game of the same display revision.[11][2]
  • Do not leave the game in the sun.[1]

Speaker

[edit | edit source]

The piezo sounder sits in a foam pad in the base. It is loud, and there is no volume control or sound switch.[14][13][18] If it buzzes, wedge it back into its pad.[18] Its two thin wires break easily when the case is opened; one owner found a wire broken off and resoldered it.[3]

What wears, and what to check

[edit | edit source]
Astro Wars wear points
Part What happens Check
Power transistor S02 (D882) Fails short or open, most often after a wrong adaptor or a failed S06 Grandstand Astro Wars Troubleshooting Guide[11][4]
Battery springs and cover Corrosion, stretched springs, lost cover Clean, reform, print or buy a cover[19][22]
DC socket switch Dirty or bent contact: adaptor works, cells do not Continuity with no plug in[3][18]
POWER switch Dirty or slack contacts Clean, bend leaves, grease[19][28]
FIRE button Dirty pad, displaced spring, spring wearing into the board Clean, reseat, insulate[5][14]
Joystick cable Broken or dry joints at the joystick board Resolder[13][18]
Filter strips Tape lets go; heat distorts the film Reattach[11]
Piezo wires Break when the case is opened Resolder[3]

Storage

[edit | edit source]
  • Take the cells out.[1]
  • Keep the game dry. A water-damaged Galaxy II had rust on its battery contacts and on the display's pins.[16]
  • Keep it out of the sun.[1]

Preventive maintenance checklist

[edit | edit source]
  1. Remove the cells and look at the springs for corrosion.
  2. Check any adaptor before use: 6 V DC, centre negative.
  3. With no plug in, check that the cells reach the board through the DC socket.
  4. Clean the POWER switch contacts and the SELECT, START and FIRE pads.
  5. Check the joystick cable joints at the joystick board.
  6. Look at the filter strips and the piezo wires while the case is open.
  7. Do the screws up gently on reassembly.
