Atari XF551 Maintenance Guide

From RetroTechCollection

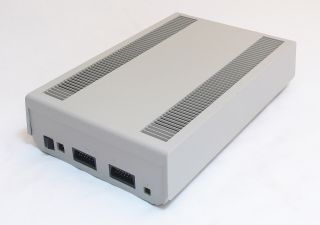

XF551 rear panel: power switch, power socket, SIO sockets and drive select switches

The Atari XF551 needs the care of any floppy drive of its age, plus attention to a few weaknesses of its own: heat from the linear regulators, a fragile board at the SIO sockets, and a head shield that comes loose on the Mitsumi mechanism. Atari's schematic C100727 covers the controller board and power supply.[1] The drive mechanism is a 5.25-inch, 360 KB, 300 rpm PC-type drive by Mitsumi or Chinon.[2][3] Much of what follows comes from Igor Gramblička's records of the XF551s he has repaired, and is cited as community experience. Fault-finding is on the Atari XF551 Drive Troubleshooting page and the capacitor list on the Atari XF551 Capacitor Replacement Guide.

Connecting and powering up

[edit | edit source]

Atari's manual says to switch off the drive, the computer and every other peripheral before connecting anything, and to keep the drive at least 12 inches (30 cm) from a television.[4] Never switch the drive on or off with a diskette inside, and never insert or remove a diskette while the BUSY light is on.[4]

Gramblička adds two rules from experience:[3]

  • Plug the adaptor's lead into the drive only while the adaptor is switched off at the wall. The XF551's power inlet makes it easy to short the plug while inserting it, which can blow the thermal fuse in the adaptor's transformer.
  • Give each drive its own adaptor. Two drives must never share one AC supply; they need two separate, isolated supplies.

The drive takes 9 V AC from the same 31 VA adaptor as the 810 and 1050 (Atari C017945, order number CA017964).[2][5]

Cleaning the heads

[edit | edit source]

Clean the heads with isopropyl alcohol or technical (denatured) spirit. Gramblička warns against petrol or naphtha-type cleaners, which attack the head material, and does not recommend acetone.[3] If one side of the drive misbehaves after cleaning, unplug the head cable from the mechanism's board, clean its contacts with spirit, let them dry and refit it; he has traced one-sided faults to an oxidised head connector.[3] General floppy drive care is on the Floppy Drive Repair page.

Head shield (Mitsumi mechanism)

[edit | edit source]

The upper head of the Mitsumi mechanism carries a small U-shaped metal shield against interference. Gramblička reports that it falls off on most original drives he has handled.[3][6]

  1. Pick the drive up, tilt it and shake it gently. A rattle inside usually means the shield is loose.
  2. Open the drive, find the shield and check that it has not fallen on to the circuit board, where it can short something.
  3. Glue it back on the head with a gel cyanoacrylate (superglue), using only small drops and keeping the glue off the head face.[3]

Refit the shield. It screens the head from interference, and Gramblička suspects a missing shield as the cause of the faults on one drive he repaired.[3][6]

SIO sockets

[edit | edit source]

The controller board is single-sided, on a paper-based laminate, with very thin tracks at the two SIO sockets. Plugging and unplugging cables flexes the sockets and cracks the joints or the tracks.[3]

  • Resolder the socket pins if the drive is intermittent or not seen by the computer.
  • Screw the sockets to the board if the screws are missing, which is often the case. Some boards have the sockets riveted instead.[3][6]
  • If you do not want to work on the board, leave the SIO cable plugged into the drive permanently so the joints are not flexed.[3]

Heat

[edit | edit source]

The 7805 and 7812 regulators are linear and drop about 9 V and 11 to 14 V respectively, so the shared heatsink runs hot. After long running the regulators can reach their internal thermal limit and cut back their outputs; the drive stops working until it has cooled, without lasting damage.[3][7] Gramblička gives three remedies:[3]

  1. Switch the drive off once the software has loaded.
  2. Fit extra heatsinks to the original one. In his experience a drop of about 10 °C is enough for reliable running.
  3. Replace the regulators with switching modules. He uses Traco TSR 1-2450 in place of the 7805 and TSR 1-24120 in place of the 7812, both pin-compatible, and reports that the drive then runs almost cold.[7]

Extra heatsinking also keeps the large capacitors next to the rectifier cooler.[6]

Switches

[edit | edit source]

Move the two drive select switches to and fro a few times now and then; if they still misbehave, replace them. Set them back to the drive number you need afterwards (both down for drive 1).[3][2] The power switch on the back can wear until it sticks. Gramblička replaces it with an original part or with a double-pole toggle switch, reusing the original metal bracket with its hole filed out to fit.[6]

Firmware EPROM

[edit | edit source]

Gramblička has fixed four drives simply by reprogramming the firmware EPROM, after bits had faded, and suggests trying a freshly programmed EPROM when an XF551 starts to misbehave and the heads are clean. He also recommends fitting Bob Woolley's patched firmware 7.7p, which corrects the drive's handling of density changes.[3] The EPROM is normally in a socket; on some drives it is a one-time-programmable part without a window.[3]

Diskettes

[edit | edit source]

The FAQ notes that the XF551 is more likely than other Atari drives to damage fragile, poor-quality diskettes, apparently because its heads press harder on the disk.[2] Use good double-density disks. Gramblička has formatted high-density disks at 360 KB in a Mitsumi XF551 but advises against it, because high-density media need a stronger recording current than the drive provides.[3] Atari's care rules are the usual ones: keep diskettes away from magnets, televisions, telephones, heat, moisture and sunlight, do not touch the recording surface, and do not write on the label with a ballpoint pen.[4]

Capacitors

[edit | edit source]

Three large 4700 µF electrolytics sit in the power supply. The white material round them is adhesive put there to stop them vibrating in transport, not leaked electrolyte; check the tops of the capacitors for bulging instead.[3] The values are on the Atari XF551 Capacitor Replacement Guide.

Checklist

[edit | edit source]
  1. Shake test for a loose head shield, and refit it if necessary.[3]
  2. Clean the heads and the head connector.[3]
  3. Inspect and resolder the SIO socket joints; fit the socket screws.[3]
  4. Check the tops of the three 4700 µF capacitors.[3]
  5. Measure +5 V at pin 1 and +12 V at pin 4 of the drive power connector J5.[1]
  6. Check the drive select switches and the power switch.[3]
  7. Consider extra heatsinking or switching regulators.[3]
[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.0 1.1 Atari (Japan) Corporation, Schematic Diagram XF551 (FCC), drawing C100727 rev. 1, sheet 1 of 2, preliminary release 19 November 1987: power supply, connector J5. Hosted as File:Atari XF551 Schematic C100727.pdf.
  2. ↑ 2.0 2.1 2.2 2.3 Michael D. Current (ed.), Atari 8-Bit Computers: Frequently Asked Questions, last modified 2 August 2026, mcurrent.name (retrieved 2026-10-06). Section 3.2.3 (XF551 mechanisms, rotation, drive select switches, fragile diskettes) and section 6.2 (power supply C017945/CA017964). Community reference.
  3. ↑ 3.00 3.01 3.02 3.03 3.04 3.05 3.06 3.07 3.08 3.09 3.10 3.11 3.12 3.13 3.14 3.15 3.16 3.17 3.18 3.19 3.20 3.21 3.22 Igor Gramblička (Igi), "Atari XF551 – doplnkové informácie / Atari XF551 – additional information", Igi blog, 26 March 2019 with later additions to September 2024, blog.3b2.sk (retrieved 2026-10-06), in Slovak. Community repair experience: head cleaning, head shield, SIO sockets, heat, switches, EPROM, power-up practice, diskettes, capacitor adhesive.
  4. ↑ 4.0 4.1 4.2 Atari Corporation, Atari DOS 2.5: XF551 Disk Drive Owner's Manual, C033537-001, 1987. Section 1, pp. 1–5 (connecting, television distance, care of diskettes); section 2, p. 7 (BUSY light caution). Hosted as File:Atari DOS 2.5 XF551 Disk Drive Owner's Manual C033537.pdf.
  5. ↑ Rich Tietjens, "Atari's New Super Disk Drive: First look inside the XF551", Antic vol. 7 no. 2, June 1988, atarimagazines.com (retrieved 2026-10-06). Same power supply as the 810 and 1050.
  6. ↑ 6.0 6.1 6.2 6.3 6.4 Igor Gramblička (Igi), "Atari XF551 – ešte raz oživenie tejto jednotky / once again reviving this unit", Igi blog, 17 March 2020, blog.3b2.sk (retrieved 2026-10-06), in Slovak. Repair log: power switch replacement, head shield, added heatsinks, riveted SIO sockets.
  7. ↑ 7.0 7.1 Igor Gramblička (Igi), "ATARI 1050, ATARI XF551 – napájací zdroj / Power Supply modification", Igi blog, 4 November 2013, blog.3b2.sk (retrieved 2026-10-06), in Slovak. Regulator input voltages and the Traco TSR 1 replacements (modification 7).
