Apple DOS Compatibility Card
| Apple DOS Compatibility Card | |
|---|---|
.jpg) |
|
| The Centris and Quadra 610 card with its 25 MHz 486SX (photo: Yuri Litvinenko, CC BY 2.0) | |
| Manufacturer | Apple Computer |
| Type | PC compatibility card (Intel 486 on a processor-direct slot card) |
| Release date | 1994 |
| Interface | Processor-direct slot |
| Compatible | Centris 610 and Quadra 610 (M2153LL/A); Power Macintosh 6100/60, 6100/66 and Performa 6100 series (M3581LL/A); built into the LC 630 and Performa 640 DOS Compatible |
| Model | M2153LL/A, M3581LL/A |
| Part number | 661-1017 (Quadra 610 card) |
The Apple DOS Compatibility Card is Apple's name for the cards that put an Intel 486 PC inside a Macintosh, so that MS-DOS and Windows programs run on the 486 while the Mac OS keeps running on the Macintosh processor. The two processors work independently; the PC uses the Macintosh's display, disks, keyboard, mouse, ports and network, and the user switches between the two environments with a key or runs a second display.[1][2] There were three versions, each tied to particular Macintosh models: a 486SX card for the Centris and Quadra 610, a 486DX2 card for the Power Macintosh 6100, and the 486DX2 card built into the LC 630 and Performa 640 DOS Compatible.[3][4] Apple's later PC Compatibility Cards are a separate line.[5]
| Card | Processor | Card RAM | DOS video | Hosts |
|---|---|---|---|---|
| DOS Compatibility Card, M2153LL/A | Intel 486SX, 25 MHz | One 72-pin SIMM, up to 32 MB | 512K | Centris 610, Quadra 610; built into the Quadra 610 DOS Compatible |
| DOS Compatibility Card for Power Macintosh, M3581LL/A | Intel 486DX2, 66 MHz | One 72-pin SIMM, up to 32 MB | 512K | Power Macintosh 6100 (not AV models), Performa 6100 series; built into the Power Macintosh 6100 DOS Compatible |
| LC 630 DOS card | Intel 486DX2, 66 MHz | 4 MB SIMM fitted, one 72-pin socket, up to 32 MB | 512K | Built into the Macintosh LC 630 DOS Compatible and Performa 640 DOS Compatible |
From Apple's specification sheets.[6][7][2][4][3] The card occupies the processor-direct slot in each machine, so nothing else can use that slot.[8]
Centris and Quadra 610 card
[edit | edit source].jpg)
The first card is a 7-inch board for the 68040 processor-direct slot of the Centris 610 and Quadra 610, drawing at most 10 W from +5 V.[6] Apple also sold the Quadra 610 with the card already fitted as the Quadra 610 DOS Compatible.[1] The 486SX is socketed. A 486DX of the same speed fits after minor changes to the board, but Apple did not support it.[5] The DOS side gets VGA modes 0 to 7 and 13h, SVGA at 640 × 480 and 800 × 600 (the latter on the 16-inch display only), and EGA, CGA and MDA. The Windows driver disks install a 1024 × 768 driver, but with 512K of video RAM the card cannot go above 800 × 600.[6][5] The Macintosh serial ports appear to DOS as two 16450-type serial ports, the printer port as a parallel port, and the ADB keyboard and mouse as an AT keyboard and PS/2 mouse; PC sound plays through the Macintosh speaker.[6] Apple's service module is 661-1017; return it without its SIMM.[9]
Power Macintosh 6100 card

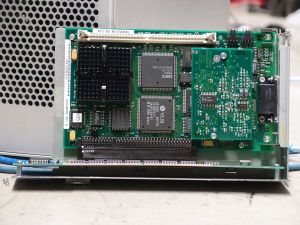

[edit | edit source]The DOS Compatibility Card for Power Macintosh carries a 66 MHz 486DX2, adds SoundBlaster 16 output on a small sound card, and came with MS-DOS 6.22 and Windows 3.1. An ODI driver lets DOS and Windows use NetWare IPX and TCP/IP over the built-in Ethernet.[2] It fits the 6100/60, 6100/66 and Performa 6100 series, but not the 6100/60AV, whose AV card already occupies the slot.[3][10] Apple did not test it in 68040 machines: a Quadra fitted with it froze at start-up under System 7.5 with PowerTalk.[11]
The upgrade kit holds the card in a bracket adapter, a monitor cable with four connectors, a hard drive power extension cable, a monitor cable adapter, a CD-ROM audio cable and two thumbscrews. With a CD-ROM drive, the drive's audio cable goes to the card's CD In connector and the kit's cable runs from the card's Sound Out connector to the logic board.[10] The full procedure is on the Power Macintosh 6100 DOS Compatible page.
Jumper J10 on the card is mismarked. It must sit in the "SX" position, over the two right-most pins. Apple traces intermittent stack overflow errors in DOS or Windows, and a screen that sometimes stays blank when the card starts, to this jumper.[10] Remove the sound card before returning a card to Apple.[10]
LC 630 and Performa 640 card
[edit | edit source]The LC 630 DOS Compatible and Performa 640 DOS Compatible have a 66 MHz 486DX2 card with a 4 MB SIMM, a SoundBlaster 16 compatible sound board and a DB-15 joystick port. Its 512K frame buffer gives 8-bit colour at 640 × 480 and 4-bit colour at 800 × 600.[4] The Macintosh LC 630 DOS Compatible page covers the boards in these machines.
Memory
[edit | edit source]The PC side can use shared memory taken from the Macintosh logic board or local memory on the card's own SIMM, but not both. Shared memory is set in the PC Setup control panel, and at least 4 MB must stay with the Mac OS; a 16 MB SIMM in a Quadra 610 allows 12 MB for the PC. Once a SIMM is fitted to the card, the PC uses only that, and the Macintosh cannot use it. Virtual memory does not count: the card sees only physical RAM. Card SIMMs must be 72-pin, 80 ns or faster.[12][5][2]
Display and game port cable
[edit | edit source]A special cable joins the card to the Macintosh video port, the display and the PC game port.[13]
| Signal | Card pin | Mac video pin | Monitor pin | Game port pin |
|---|---|---|---|---|
| SW 1A | 1 | 2 | ||
| R AX | 2 | 3 | ||
| R AY | 3 | 6 | ||
| Blue | 4 | 9 | 9 | |
| Green | 5 | 5 | 5 | |
| Mac CSYNC | 6 | 3 | ||
| Cable detect | 7 | 14 | ||
| HSYNC out | 8 | 15 | ||
| Sense 0 | 9 | 4 | 4 | |
| +5 V | 10 | 1, 8, 9, 15 | ||
| R BX | 11 | 11 | ||
| R BY | 12 | 13 | ||
| SW 2A | 13 | 7 | ||
| Blue ground | 14 | 13 | 13 | |
| Green ground | 15 | 6 | 6 | |
| Mac HSYNC | 16 | 15 | ||
| VSYNC out | 17 | 12 | ||
| Sense 1 | 18 | 7 | 7 | |
| SW 1B | 19 | 10 | ||
| Ground | 20 | 11 | 11, 14 | 4, 5, 12 |
| SW 2B | 21 | 14 | ||
| Red | 22 | 2 | 2 | |
| Red ground | 23 | 1 | 1 | |
| Mac VSYNC | 24 | 12 | ||
| CSYNC out | 25 | 3 | ||
| Sense 2 | 26 | 10 | 10 |
Troubleshooting
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Stack overflow errors in DOS or Windows, or a blank screen when the PC starts (6100 card) | Jumper J10 in the wrong position; the marking is wrong | Remove the card and set J10 to "SX", over the two right-most pins[10] |
| Wavy horizontal lines or flicker in DOS on a single Apple 14-inch Macintosh Color Display | Interference on the horizontal sync line | Install PC Setup 1.2 (System Update 3.0) and select "Fade Screens"[14] |
| Checkerboard DOS screen in a very cold room | Temperature near freezing | Let the machine warm up; the pattern clears[15] |
| A DOS program shows black and white on a colour display | The program misdetects the display | Use the program's command-line video switch[15] |
| Cannot give the PC all the memory | 4 MB must stay with the Mac OS; shared memory stops once the card has a SIMM | Add RAM to the logic board, or fit a SIMM to the card[12] |
| DOS date and time reset after a restart | The card has no clock and reads the Macintosh clock at start-up | Normal; set the Macintosh clock[5] |
| Quadra freezes at start-up with the Power Macintosh card fitted | Unsupported in 68040 machines | Use the card in a 6100; turning off "Auto-start PC" may help[11] |
