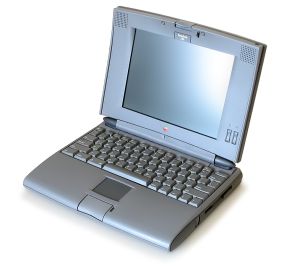

Fault-finding for the PowerBook 500 series: the PowerBook 520, 520c, PowerBook 540 and 540c. The tables follow Apple's symptom charts in the PowerBook 500 Series Service Source, which work at module level: try the cures in the order given, test after each, and refit the original module before moving on to the next cure.[1] Community findings are added under the symptom they belong to.
Before you start
[edit | edit source]- Measure the adapter: pins 1 (VBATT) and 2 (VMAIN) should read 16.4-16.6 V against the outer shield, and pins 3 and 4 are ground.[1]
- Measure the battery: about 10.8 V charged and 7.8 V flat. A battery stored out of the machine for a long time can fall to 5.0 V.[1] Check old batteries and the bay contacts for leakage.[2]
- Reset the power manager: remove the adapter and batteries, wait 3-5 minutes, hold Control, Command, Option and the power key for 5-10 seconds, refit the battery and switch on.[1]
- Work with the batteries out and an earthed wrist strap; Apple describes the series as very susceptible to static damage.[1]
Power
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Screen blank, computer does not respond | Flat battery, hung power manager, loose connection, blown fuse, keyboard, boards | Apple's order: restart; connect the adapter and restart after 3-4 minutes; try a known-good charged battery; check the interconnect board, daughterboard and motherboard connections; reset the power manager; test the motherboard fuse for continuity; then the keyboard, interconnect board, daughterboard and motherboard[1] |
| Computer will not power up | Adapter, battery, fuse, motherboard | Restart; connect the adapter and restart after 3-4 minutes; try a known-good adapter and check that its tip is not chipped or cracked; try a known-good battery; replace the motherboard fuse; then the motherboard[1] |
| Adapter fails the voltage test, or works for a while and then stops | Failed capacitors in the adapter | MacDat found leaking capacitors in 500-series adapters and some that still failed after a recap; one owner found internal parts shattered. Recap it (see PowerBook 540 Capacitor Replacement Guide) or use a replacement supply[3][4] |
| Adapter connected, Control Strip does not show it | Connection, battery, adapter, motherboard | Check the plug; try a known-good charged battery and adapter; then the motherboard[1] |
| Runs on the adapter but not on a battery that measures within tolerance | Battery contacts, battery calibration, backup battery, motherboard | Reseat the battery so it mates with the contacts; run Apple's intelligent battery reconditioner software; replace the backup battery and charge the machine for 48 hours; then the motherboard[1] |
| Battery will not recharge | Loose connection or dead battery | Reseat the battery and check the adapter; if the connections are good the battery is dead. Batteries left flat in the computer for more than two weeks may never recharge[5] |
| Low-power warning soon after starting | Discharged battery or heavy load | Recharge or connect the adapter; use low-power peripherals; reduce use of the drives, modem, sound and backlight; then try a known-good battery and adapter, then the motherboard[1] |
| Control Panel settings change after the main battery is removed | Backup battery | Check the cables; replace the backup battery; then the interconnect board, daughterboard and motherboard[1] |
| Date and time lost after ten minutes without power | Backup battery flat or dead | Leave the machine plugged in for 48 hours; replace the backup battery if it still loses the time[1] |
The motherboard fuse is Apple part 922-1116. It sits on the motherboard under the top case.[1]
.png)
Startup
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Eight-tone error chord after the startup chord | RAM | Reseat the RAM card and check the connection; replace the RAM card, then the daughterboard, then the motherboard[1] |
| Four-tone error chord after the startup chord | Hard drive or floppy drive | Unplug the hard drive cable and restart; if it starts normally, reconnect and retest. Replace the hard drive. Do the same with the floppy drive cable, then replace the floppy drive, then the motherboard[1] |
| No startup tone and no picture; the hard disk spins | Daughterboard not seated | One 540c that only spun its hard disk had its processor card left unplugged; reseat the daughterboard[6] |
| System freezes now and then, usually after running for a while (540 and 540c) | Daughterboard | Apple's cure is a new daughterboard[1] |
Apple's startup flowchart:[1]
- Reset the power manager and press the power button.
- No startup tones, no picture: replace the daughterboard, then the motherboard. Tones but no picture: check the cables, then the interconnect board, daughterboard and motherboard. An abnormal tone: use the startup chart above.
- No grey pattern: check the cables, then the inverter board, interconnect board, interconnect-to-display cable, display, daughterboard and motherboard.
- No desktop and no flashing question mark: daughterboard, then motherboard. A flashing question mark that stays: reset PRAM, update the SCSI driver with HD SC Setup, reinstall the system, then the hard drive cable, hard drive, motherboard and daughterboard.
- If the trackpad and keyboard do not work: reset the power manager, check the cables, then the trackpad, keyboard, interconnect board, daughterboard and motherboard.
- Initialise a known-good floppy disk; if it fails, replace the floppy cable, then the drive.
Sad Mac and chime codes are decoded on Sad Mac Error Codes.
Video
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Pixel never comes on or is always on | Display | 540c: replace the display. 540: replace the display if there are more than five voids (pixels always white) or two or more within an inch of each other. 520 and 520c: replace the display[1] |
| Part or all of a row always on or never on | Cables, interconnect board, motherboard, display | Check the cables; replace the interconnect board, motherboard and display in that order[1] |
| Display very light or totally white | Settings, connections, inverter, cables, display, boards | Adjust contrast and brightness; check the cable, inverter, interconnect, daughterboard and motherboard connections; replace the inverter board, interconnect board, interconnect-to-display cable, display, daughterboard and motherboard[1] |
| Backlight does not light | Backlight cable, inverter, cables, display | Check the backlight connection and that no cable is pinched or cut; replace the inverter board, interconnect-to-inverter cable, interconnect board, interconnect-to-display cable, display, daughterboard and motherboard[1] |
| No picture, but the computer seems to work | Sleep, settings, connections, inverter, display | Press a key to wake it; adjust contrast and brightness; check every connection; connect the adapter; replace the inverter board, interconnect board, display cable and display; reseat, then replace, the daughterboard; then the motherboard[1] |
| 520 or 520c display dims or stops below 5 °C or above 40 °C | Normal for the passive-matrix panels | Let it warm up for 30 minutes[1] |
| Thin white line across the middle of a 520 or 520c screen | Normal | None[1] |
| Dark vignette that grows in from the corners as a 540 warms up, gone after a few hours off | "Tunnel vision" in the Hosiden greyscale panel | The usual remedy is baking the panel at 100 °C for a few hours. MacDat reports it helps mild cases in the short to medium term and does not cure severe ones[7] |
| Diagonal scrapes, bubbles, discolouration, cracking film or a vinegar smell | Polariser adhesive breaking down ("vinegar syndrome") | Replace the polariser film: ordinary film on the active-matrix 540 and 540c panels, FSTN film with a retarder layer on the passive-matrix 520 and 520c[8][9] |
Floppy and hard disk
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Internal floppy drive does not work | Disk, cable, drive, motherboard | Try a known-good disk; check, then replace, the floppy cable; replace the drive, then the motherboard[1] |
| Disk ejects at startup, Mac icon with a blinking X | System disk, trackpad or keyboard, cable, drive | Try a known-good system disk; check that the trackpad button and keyboard work; check and replace the cable; replace the drive, then the motherboard[1] |
| Disk will not eject | Mechanism, brackets, early drive | Switch off, hold the trackpad button and switch on; use a straightened paper clip in the hole beside the slot. Replace the drive on serial numbers FC410-FC414 or CD412-CK414. Check the cable, refit the drive brackets correctly, then replace the cable, drive and motherboard[1] |
| Read, write or initialisation errors | Disk, cable, drive | Try a known-good disk; check and replace the cable; replace the drive[1] |
| Internal hard drive does not work | Adapter, external SCSI devices, cable, driver, drive | Connect the adapter; disconnect external SCSI devices; check the hard drive cable; reinitialise with HD SC Setup; replace the cable, drive and motherboard[1] |
| Original drive spins but does not come ready, or ticks | Stiction or degraded rubber bump stops | Some original drives start after a tap; drives with sticky bumpers can be repaired with the cover off. Replace the drive with a SCSI emulator if the data is safe[9][10] |
See Floppy Drive Repair and Hard Drive Maintenance and Repair.
Trackpad, keyboard and peripherals
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Cursor does not move with the trackpad | Power manager, connections, trackpad, keyboard | Reset the power manager; check the trackpad, interconnect board, keyboard and motherboard connections; plug in a low-power mouse to tell trackpad from keyboard; replace the trackpad or keyboard, then the interconnect board and motherboard[1] |
| Cursor moves erratically or stops now and then | Dirty pad, connections | Reset the power manager; clean the trackpad surface; check its connections; replace the trackpad, keyboard, interconnect board, motherboard[1] |
| Trackpad button does nothing | Power manager, connections, trackpad | Reset the power manager; check the connections; replace the trackpad, keyboard, interconnect board, motherboard[1] |
| No response to any key | Power manager, connections, keyboard | Check that the computer is on; reset the power manager; check the keyboard and interconnect board connections; replace the keyboard, interconnect board, motherboard[1] |
| Will not boot after an external SCSI device is connected | Device off, termination, SCSI ID | Switch the device on first; check the cables, termination and that its ID is unique; then the internal drive and motherboard[1] The 500 series does not supply SCSI termination power[11] |
| In SCSI disk mode, no SCSI icon until the host has booted, or a crash when the host shuts down | Motherboard | Replace the motherboard[1] |
| Printer, modem or other serial device does not work | System version, settings, cable, boards | Use System 7.1.1 or later; check the Chooser and control panel settings and the cables; select External Modem in the control panel for a device on the external port; then the daughterboard and motherboard[1] |
| No sound from the speaker | Volume, headphone plug, connections | Set the volume above 0; check nothing is plugged into the sound-out jack; check the speaker and interconnect board connections; replace the interconnect board, then the motherboard[1] |
Modem and PCMCIA module
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Modem options missing from the control panel | System, card seating | Use System 7.1.1 or later; reseat the modem card; replace it, then the motherboard[1] |
| Modem garbles text or ignores AT commands | Settings, phone line, card | Match the baud rate and data format to the remote modem; check the phone cord; reseat and replace the modem card, then the daughterboard and motherboard[1] |
| Modem connects but cannot talk to the remote modem | Error correction | The internal modem uses error correction by default; send AT&Q0 to turn it off if the remote modem has none[1] |
| Under System 7.5, "not shut down properly" and "internal modem could not be identified" messages, then a hang | PowerPort 500 software | Restart holding the Space bar to open Extensions Manager and disable the PowerPort 500 control panel; once started, turn off the shutdown warning in General Controls, turn PowerPort 500 back on in Extensions Manager and restart. Failing that, remove the GlobalFax files and reinstall the Global Village software[1] |
| PCMCIA card will not eject | Blocked slot | Clear the slot; push a straightened paper clip into the hole next to the slot[1] |
| Card shown as "defective" or "unrecognizable" | Damaged card or missing driver | Eject the card; install its driver or try another card[1] |
| PCMCIA module does not work after a PowerPC upgrade | Rev. A or B module | Apple says only the Rev. C module works with the PowerPC daughterboard; Global Village modem software also needs updating after the upgrade[1] |
Things that are not faults
[edit | edit source]- The screen goes blank and the machine sleeps every few minutes on battery: system sleep. Adjust the sleep delays or connect the adapter.[1]
- Applications slow down after a few seconds: system rest. Connect the adapter if it gets in the way.[1]
- A click when the lid is closed: refit the centre base cover with the screw nearest the SCSI port fitted first.[1]
