PowerBook 1400 General Maintenance

From RetroTechCollection

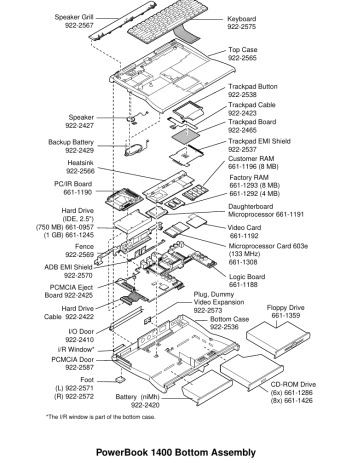

Apple's exploded view of the PowerBook 1400 bottom assembly (Service Source, PDF p. 234)

Maintenance of the PowerBook 1400 series covers the cracking display housing, the NiMH main battery, the backup battery in the top case, the surface-mount capacitors and the drives. The take-apart steps are from Apple's Service Source; owners' findings are given in each section.[1]

Opening the machine

[edit | edit source]

Apple's tools for the 1400 are #0 and #00 metric Phillips screwdrivers, a 5 mm (3/16 in) nut driver for the processor card standoffs, a small flat-blade screwdriver, a dental pick for the trackpad cable connector, and a logic board separator. Screws differ by location, so keep them sorted.[1]

  1. Disconnect the adapter. Slide the battery latch over and pull the battery out, and remove the media bay device the same way. When removing a CD-ROM drive, push its latch fully to the right or the door can break.[1]
  2. Slide the speaker grill firmly to the left and lift it off.[1]
  3. Pull the keyboard up by its metal frame and turn it over onto the top case without straining its cable. Remove the six heatsink screws and lift the heatsink off. The keyboard cable connects to the logic board.[1]
  4. The hard disk lifts out after its two shield screws; pull its cable straight off, as a damaged cable means removing the logic board to replace it.[1]
  5. On reassembly, always fit the battery before connecting the adapter.[1]

Display housing and hinges

[edit | edit source]

The 1400's rear display housing cracks around the hinges, and the cracks spread with use until the plastic breaks.[2] AE Chadwick designed a 3D-printed shim that fits inside the lid against the existing structure to reinforce it (Thingiverse, CC BY 4.0).[3] MacUp72 documented fitting it: remove the bezel and display, peel off the foil-wrapped inverter, cut free the reed switch board, unscrew the hinges and lift the glued aluminium backing foil.[4] 3lectr1cPPC fixes the shim with JB Weld, having found superglue and plastic weld failed to hold long-term on another PowerBook.[5] Clutch covers also break; John Allen published a printable replacement (Thingiverse, CC BY-NC 4.0).[6]

Apple's notes on the display assembly: each clutch assembly is a clutch and a bracket, left and right are not interchangeable, and five screws hold each one. When refitting the display assembly, try to slide a 3.5-inch floppy disk between the closed lid and the top case; if it fits, the clutch screws are too loose. Over-tightened bezel screws crack the bezel, which shows as creaking when the lid moves. The brightness and contrast actuators are heat-staked and must not be removed.[1]

Batteries

[edit | edit source]

Main battery

[edit | edit source]

The main battery is NiMH. Apple's handling rules: do not leave it in the computer for more than a week without the adapter, keep the cap on it when it is out of the machine, keep it out of hot places, and do not store it for more than six months without charging. A full battery reads 14 V; the computer shuts down at 12 V.[1] Apple's developer note rates it at 30 Wh.[7] LaPorta rebuilds packs with eight 4/3A flat-top NiMH cells, reusing the pack's electronics and thermistor; cells with a raised button top will not fit.[8] Apple warns against using batteries from other PowerBooks that look similar.[1] A second battery can go in the expansion bay.[1]

Backup battery

[edit | edit source]

A 50 mAh rechargeable backup battery keeps the clock running and holds RAM for a few minutes while the main battery is changed in sleep.[1] Apple's procedure reaches it from the top case: remove the speaker grill, keyboard and heatsink, hard disk, clutch covers, display assembly and top case, disconnect the trackpad cable from the battery, take out the two cover screws and guide the cable out from under the EMI shield. On refitting, the cover's cutout goes at the front with the cables to the left.[1] Owners report the pack as two Panasonic VL2330 rechargeable lithium cells. fbl00 replaced his through the main battery compartment with a right-angle screwdriver, without dismantling the machine; some late 166 MHz machines have a second pack, which Apple's manual does not mention.[9] AEChadwick fitted a small board with a Keystone 3005 coin cell holder in the bay so that later replacements are easier.[10] A flat backup battery shows as a sleep light that stays on and a machine that will not start until the reset button is held down; see PowerBook 1400 Troubleshooting#Power.[1]

Capacitors

[edit | edit source]

The logic board, the display and the inverter carry surface-mount electrolytics, and 3lectr1cPPC found the 33 µF part on his logic board had leaked.[5] See PowerBook 1400 Capacitor Replacement Guide.

Memory

[edit | edit source]

Memory is 12 or 16 MB on the logic board, expandable to 64 MB with cards built from 70 ns or faster low-profile TSOP chips. The customer card has connectors on both faces so that a second card can piggy-back on it, supported by a bracket on the top case: fit the first card below the bracket and the second on top of it. Pry cards up with a flat-blade screwdriver without damaging the connectors underneath; fit customer cards after the top case.[1]

Storage and expansion

[edit | edit source]

The internal drive is a 2.5-inch IDE unit no more than 12.5 mm high; Apple corrected an earlier figure of 19.25 mm.[11] The 1 GB drives in early 1400c/117 and 1400c/133 machines were formatted to about 750 MB at the factory and can be reinitialised to full size with Drive Setup.[1] AEChadwick fitted a PATA solid-state drive in a printed sled.[10] The expansion bay takes the floppy drive, the CD-ROM drive or a second battery; the bay and battery latches come loose, and Apple supplies them as part 922-3304 (pack of five), which snap in while the plastic under them is supported.[1] The two PC Card slots take two Type I or II cards or one Type III card in the lower slot; do not pull a card before it has been ejected, and do not eject one while the machine is asleep.[1] See Hard Drive Maintenance and Repair.
